所有商品 » 11.耳機-選類別 Type » -- 頭帶式降燥音 » ICOM 2pin S

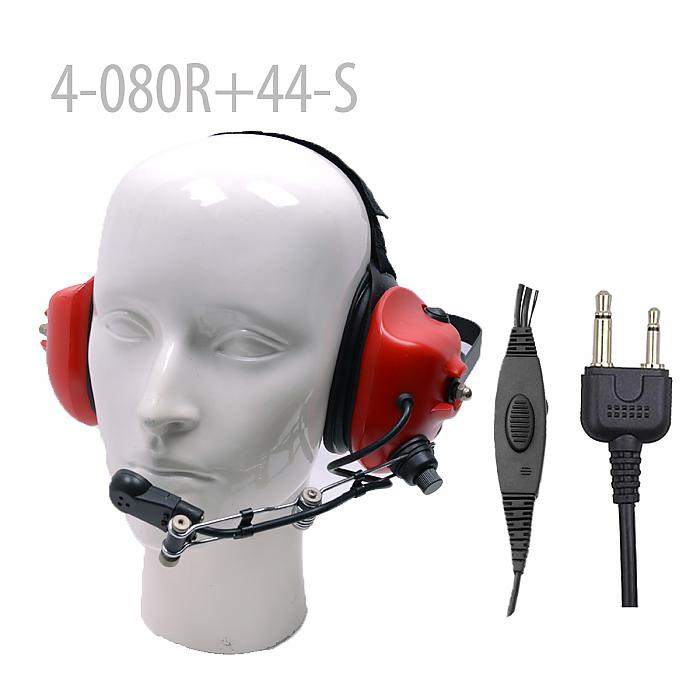

編號: 4-080R+44-S
名稱: 4-080R紅色航空咪44-S迷你插頭適用於ICOM IC-T7H ,IC-W32A,IC-F3,IC- F3S,IC- F4
優惠價: HKD 375.00
貨幣單位:: HKD
可以寄往: 香港
0

詳情

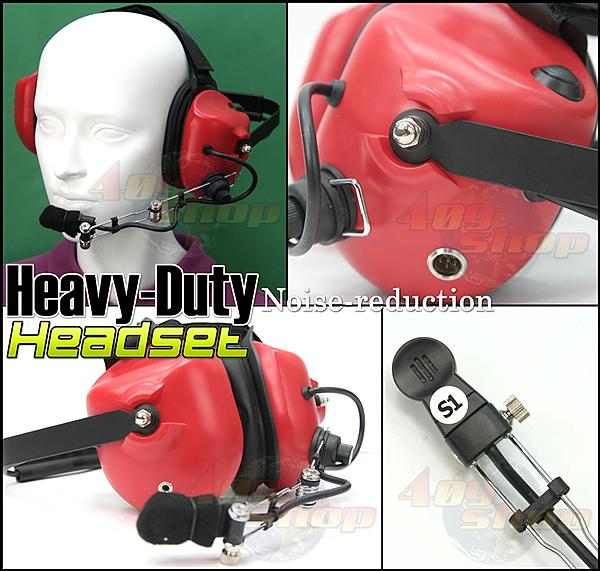

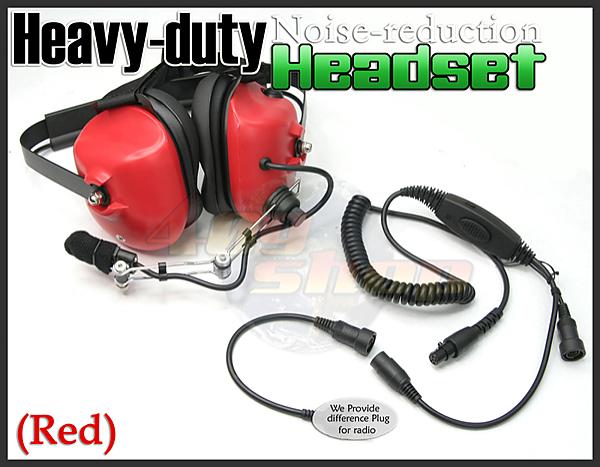

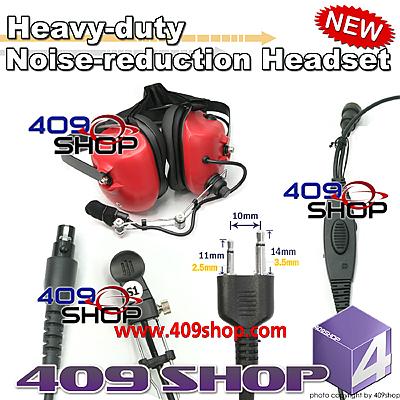

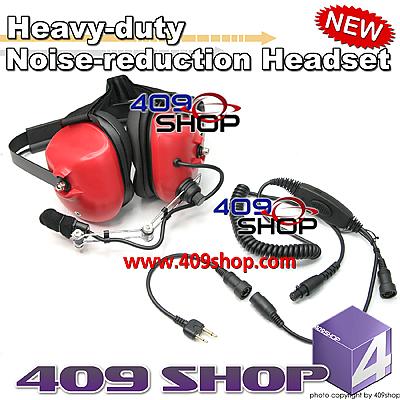

4-080B 紅色航空咪44-S迷你插頭適用於ICOM IC-T7H ,IC-W32A,IC-F3,IC- F3S,IC- F4

這種重型耳機可以滿足飛行駕駛和賽車在極高噪音環境下的需求。它最適用於製造廠。

建立的丙烯腈丁二烯苯乙烯（ABS），揚聲器的圓頂是堅硬耐用和耐熱的。海綿過濾器層確保24dB的高被動降噪水平（NRR），這意味著減少到達您耳朵的背景噪聲量。三層厚的耳墊在高噪音環境下，圍繞著您的每一隻耳朵創造一個密封。

揚聲器通過穿過頭後的金屬框架連接。雖然揚聲器的堅固材料有點重，魔術貼膠帶頭戴耳機可以減輕重量，並提供可調節舒適的穿戴體驗。

駐極體麥克風提供一致和準確的傳輸。它連接到耳機與強大的金屬框架，有助於調整到最合適的位置，而不是鬆動。

以下是重型耳機的一些特殊功能：
雙PTT設置：您有一個PTT左耳殼，另一個在導線的中間通向雙向無線電;
可拆卸線：可以更換通向收音機的導線，以便相同的耳機可以使用不同的收音機（更換不同的接口電纜）;此列表將附帶與特定型號配合使用的電線。
可調節的魔術貼錶帶：頭帶是可拆卸的，可調節到不同的頭部尺寸，以便在長時間的操作中舒適穿著;
在極端環境下經過充分測試：耳機已經在50攝氏度和-25攝氏度下進行了測試;它也通過了95％濕度和40攝氏度的濕度測試。

單線設計，PTT耳機與收音機之間;
電纜長度：總長90厘米/ 4英尺45厘米/ 1.5英尺從耳機到PTT;從PTT到收音機45厘米/ 1.5英尺;
重量：488g;
揚聲器技術規格：
被動降噪等級（NRR）：24dB;
阻抗：1.0V，800Hz時8Ω+/- 15％;
諧振頻率：200Hz +/- 20％（無擋板）;
輸出SPL：99dB +/- 3dB（1W Zxis計算）;
頻率響應：15kHz;
額定頻率範圍：15kHz;
額定功率輸入：0.5W;
最大功率輸入：0.6W;
失真：最大5％（額定功率輸入1000Hz）;
負載試驗：24小時噪聲0.5W;
熱試驗：50 +/- 2℃和20-25％R.H.在5小時內;
濕度測試：40 +/- 2℃和90-95％R.H.在5小時內;
冷試驗：-25℃，16小時;
麥克風技術規格：
靈敏度：-43dB（f = 1kHz，0dB = 1V / Par VS = 4.5V，R =1.0kΩ）;
輸出阻抗：1.0kΩ（f = 1KHz）;
電流消耗：500μA（VS = 4.5V，RL =1.0KΩ）;
信噪比：40dB;
降低電壓：-3dB（VS = 3.0V至1.5V）;
焊接熱衝擊：+/- 3dB（3分鐘內350 +/- 5℃）;
存儲溫度範圍：-40°C〜+ 80°C;
工作溫度範圍：-40°C〜+ 70°C;
高溫試驗：2小時內55±2℃;
濕度測試：40 +/- 2℃和93±2 / -3％R.H.在48小時內;
低溫試驗：-20 +/- 3℃;
振動試驗：頻率範圍= 10〜30〜10Hz，振幅= 0.55mm;每個時期的時間= 3分鐘。總時間= 30min;頻率範圍= 30〜55〜30Hz，振幅= 0.15mm;每個時期的時間= 3分鐘。總時間= 30分鐘。

包裝:
1 x 紅色航空咪
1 x 迷你插頭適用於ICOM IC-T7H ,IC-W32A,IC-F3,IC- F3S,IC- F4

S Plug - 適用於對講機型號:

FOR ICOM : IC-T7H ,IC-W32A,IC-F3,IC- F3S,IC- F4, IC-F4S,IC- F4TR,IC-F10, IC-H2,IC- H6,IC- J12, IC-M5, IC-U12, IC-U16, IC-4008, IC-4088A

Cobra(All 2-Pin) FOR Motorola Talkabout : 200, 250 Distance, Distance DPS

FOR Ritron Patriots Series : RTX, SST, Jobcom, JMX, MBX, JMX-102,JMX-141, JMX-144,JMX-146,JMX-152,
JMX-441, JMX-444,JMX-446, JMX-452, Patriot SST plus

FOR Motorola : 5500

FOR Vertex : VX200-VX500- VX510-VX52OUD
