TG-UV2 x5+1x 1020-0001

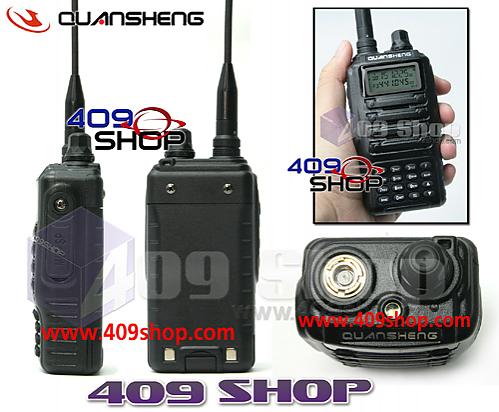

5 x QUANSHENG TGUV2 Dual Band
(VHF 136-174Mhz and UHF 400-470MHZ)
+ 1 x PoloShirt Tee
(please choose the PoloShirt Tee Size)
Key Specifications/Special Features:
· Frequency range:
FM: 88-108MHz (RX)
VHF: 136-174MHz (RX/TX)
UHF: 400-470MHz (RX/TX)
Double frequency display of the LCD
- U-U, V-V, U-V work mode
- CTCSS/DCS auto search
- Built-in Vox function
- Scrambler
- FM radio
- Jacklight function
- Alpha-numeric display
- Talk in multi-bands
- PC programmable
- 1750Hz call tone
- Frequency/channel scanning
- Channel scanning list edition(by which you may choose a channel to scan)
- Battery : Li-ion battery
- Dual-watch operation
- Power switch:5w/2.5w/1w
- Priority scan
- Wide/narrow bandwidth
- Transmitter:
- Power output: High≥5w Medium ≥2.5w Low ≥1w
- Emission Current: ≤1.5A
- Modulation sensitivity: 12mV
- Modulation Distortion: <5%
- Modulation Limiting : Wide <5KHz Narrow <2.5KHz
- Modulation Mode: 16ΦF3E 11KΦF3E
- Remanent Radiation ≤7μw
- Preemphasis character : 6dB
- CTCSS/DCS Frequency Deviation :0.75KHz±50Hz 0.37KHz±30Hz
- Receiver:
- RF Sensitivity: -122dBm(12dB SINAD)
- Modulation Receiver Bandwith: 5KHz
- Audio Distortion: ≤10%
- Audio power: <0.5w
- Audio Response:6dB
- Blocking: ≥85dB
- Spurious response rejection: ≥65db
- Dimensions: 110mmx 56mmx 37mm
Free For
PoloShirt Tee
(please choose the PoloShirt Tee Size)
Free For
|
|
S |
M |
L |
XL |
XXL |
|
胸圍 |
19吋(inch) |
20吋(inch) |
21吋(inch) |
22吋(inch) |
23吋(inch) |
|
衫長 |
26吋(inch) |
27吋(inch) |
28吋(inch) |
29吋(inch) |
30吋(inch) |

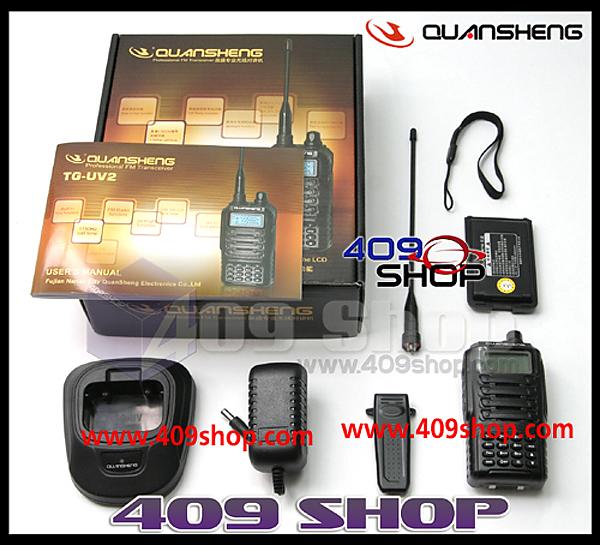

- 5 x Quansheng Dual Band radio TG-UV2 (VHF 136-174Mhz and UHF 400-470MHZ)
- 5 x 7.4V 2000mah Li-ion Battery Pack
- 5 x Dual band Antenna
- 5 x Belt Clip
- 5 x ENG Manual
- 5 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 5 x Earpiece with PTT
- 1 x PoloShirt Tee 1020-0001 (please choose the PoloShirt Tee Size)
C
* This model without Voice scrambler | |
|
