FD-890UH

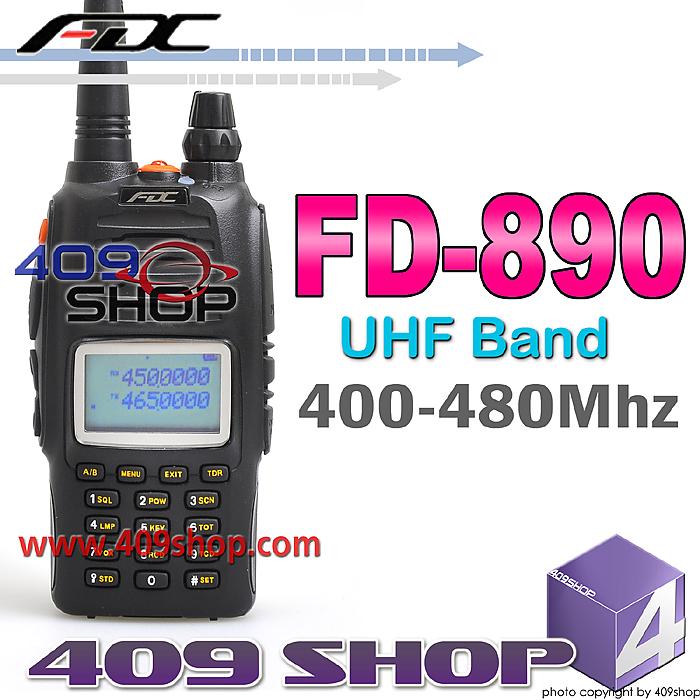

FDC FD890 UHF 400-480Mhz Handheld Two-way Radio
Special features
1. Dual Freq.,dual display and dual standby
2. Build-in FM radio;channel name editable
3. Charging directly from the power supply or charging with the cradle
4. HI/LO power select(1-5W)
5. Repeater function;Reset
6. Keypad lock (Auto/Manual);3 modes of busy channel lockout
7. Rain-proof;1750Hz burst tone
8. Priority Scan;Adding CH scan, Multiple Scan modes（TO/CO/SE)
9. Emergency Alarm function;Transmitting overtime alarm
10. Reverse freq. function CTCSS/DCS Scan
11. Multipe Step frequency(5/6.25/10/12.5/25/50KHz)
12. Master frequency auto/manual switch mode
Technical specifications
| Model NO. |
FD-890 |
|
General
|
|
Frequency Band
|
UHF
|
|
|
Frequency Range
|
400-480Mhz
|
|
|
Channel Capacity
|
128
|
|
Operating Voltage
|
7.2V DC ±15%
|
|
Antenna Impedance
|
50Ω
|
|
Channel Spacing
|
12.5kHz/25kHz
|
|
Working Temperature
|
-30 ℃ - +60 ℃
|
|
Frequency Stability
|
±2.5 ppm
|
|
Size (Without Antenna)
|
104(W)mmx62(L)mmx36mm(D)
|
|
Weight(With Battery)
|
about 250g
|
|
Battery
|
1600mAh(Li-ion)
|
|
Transmitter
|
|
RF Power Output
|
5W/4W
|
|
Modulation Type
|
F3E
|
|
Modulation Distortion
|
< 5%(300-3000Hz)
|
|
Max Freq Deviation
|
< 5kHz(1000Hz When 100%)
|
|
FM Noise
|
<=-45dB
|
|
Receiver
|
|
Sensitivity(12Db SINAD)
|
0.16μV
|
|
Selectivity
|
55dB
|
|
Adjacent Channel Selecivity
|
>=70dB
|
|
Noise Respond
|
>=60dB
|
|
Communication Range
|
3-5km(Downtown),6-20km(In the Open Area)
|
|
FM Noise
|
30dB/40dB
|
|
Modulation Type
|
8K/16KF3E
|
|
Audio Power Output
|
500mW When Distortion Less Than 10%
|
|
Audio Distortion
|
< 5%
|
|
Operating Bandwidth
|
±3.5kHz/3.75kHz
|
|
Standby Current
|
< 12mA
|

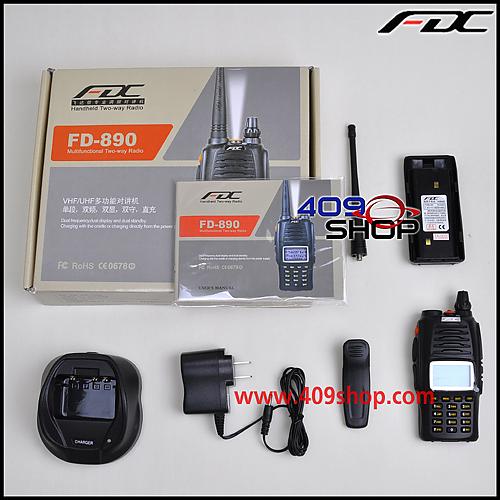

- 1 x FDC FD-890 UHF 400-480Mhz
- 1 x 7.4v 1600mAh Li-ion Battery
- 1 x UHF Antenna.
- 1 x Belt Clip.
- 1 x ENG Manual
- 1 x Wall Charger PSU (Provide PSU plug for your Country)
- 1 x PTT Earpiece for free
