FD-850UH + 4-001K

FDC FD850UH 400-480Mhz FM Transceiver

Special features

IPX6 waterproof	Noice Suppression function	Voice function(Chinese/English),Voice ON/OFF
Hight power output(4W/5W)	Timer out timer;Monitor	Battery LED indicator
Rain-proof;1750Hz burst tone	Built-in FM radio;Led flashlight	Battery save function
Low batter alarm(Voice prompt)	Scan function(TO/CO) Scan ON/OFF	Emergency Alarm function(Local/Remote alarm)
50 groups of CTCSS 105 groups of DCS	High capacity Li-ion battery	Charging directly from the power supply or charging with the cradle.

Technical specifications

Model NO.	FD-850
General
Frequency Band	UHF
Frequency Range	400-480MHz
Channel Capacity	16
Operating Voltage	7.2V DC ±15%
Antenna Impedance	50Ω
Channel Spacing	12.5kHz/25kHz
Working Temperature	-30 ℃ - +60 ℃
Frequency Stability	±2.5 ppm
Size (Without Antenna)	104(W)mmx62(L)mmx36mm(D)
Weight(With Battery)	about 250g
Battery	1600mAh(Li-ion)
Transmitter
RF Power Output	5W/4W
Modulation Type	F3E
Modulation Distortion	< 5%(300-3000Hz)
Max Freq Deviation	< 5kHz(1000Hz When 100%)
FM Noise	<=-45dB
Receiver
Sensitivity(12Db SINAD)	0.16μV
Selectivity	55dB
Adjacent Channel Selecivity	>=70dB
Noise Respond	>=60dB
Communication Range	3-5km(Downtown),6-20km(In the Open Area)
FM Noise	30dB/40dB
Modulation Type	8K/16KF3E
Audio Power Output	500mW When Distortion Less Than 10%
Audio Distortion	< 5%
Operating Bandwidth	±3.5kHz/3.75kHz
Standby Current	< 12mA

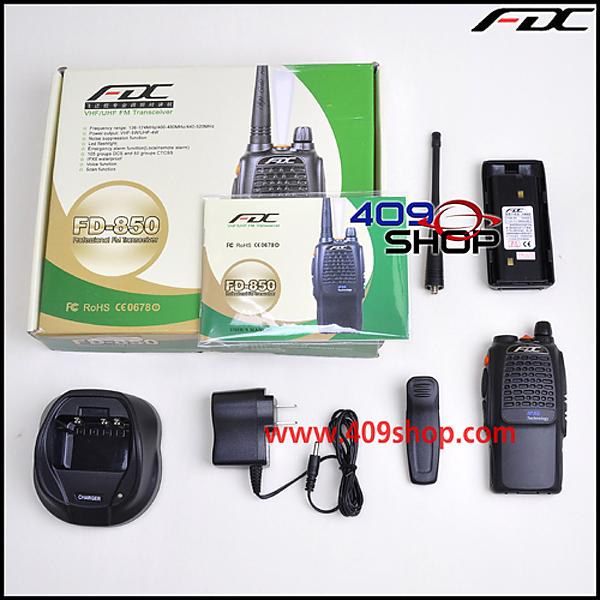

Each Set PACKAGE CONTAIN

1 x FDC FD-850 ( UHF 400-480Mhz)
- 1 x 7.4v 1600mAh Li-ion Battery
  - 1 x UHF Antenna.
    - 1 x Belt Clip.
      - 1 x ENG Manual

        1 x Wall Charger PSU (Provide PSU plug for your Country)

        1 x PTT Earpiece for free
