編號: KG-801U + S002B

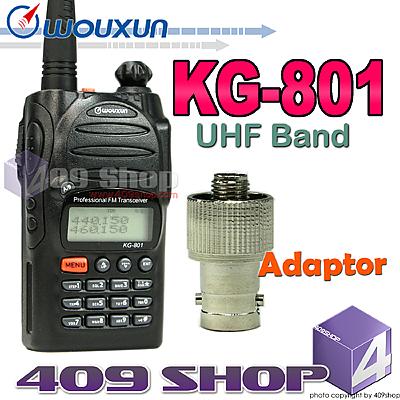

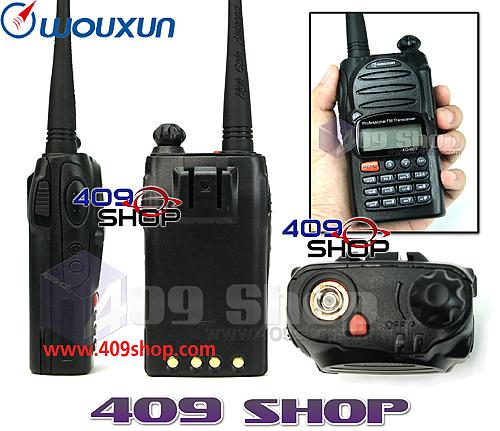

名稱: Wouxun KG-801 UHF 400-470Mhz Radio + Adaptor對講機

優惠價: HKD 610.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


KG801U + S002B

WOUXUN KG-801

UHF 400-470FM + Earpiece

+ Adaptor





Main Features

. UHF Dual frequencies

. Dual display and standby modes
. 128 memory channels
. 8 groups scrambler
. Channel name edit available
. Output power UHF 4W/1W
. High/Low power can changeable by top key
. VOX (Level adjustable)
. DTMF encoding and DTMF decoding
. 105 groups D.C.S/50 groups CTCSS
. DCS/CTCSS of RX and TX can be set respectively
. Reverse frequency function
. Busy channel lockout
. Distant alarm
. ANI (Caller ID)
. Multi scan mode (TO/CO/SE)
. Inspection, monitor, stun, kill and emergency alarm
. All calls, group calls and selective calls
. Calling ring and ring overtime auto answer
. Multi silent mode (QT/QTADT/QTXDT)
. Channel steps (5K/6.25K/10K/12.5K/25K)
. Wide/Narrow bandwidth selection (25KHz/12.5KHz)


Technical indicators:
KG-801 Technical Specification

Frequency Range

UHF: 400-470MHz

Channel Capacity 128
Channel Spacing 25/12.5KHz
Maximum Deviation ±5KHz to 25KHz ±2.5KHz to 12.5KHz
Frequency Stability ±2.0ppm
Operating Voltage 7.4V
Operating Temperature -30℃~+60℃
Battery 1400mAh(Li-ion)
Standby Current 50mA
Antenna Impedance 50Ω
Dimension(without antenna&battery(L×W×H) 105×62×39(mm)
Weight(with antenna&battery) 260g
Transmitter
RF Power Output UHF: 4W
Modulation 16KфF3E/11KфF3E
Spurious and Harmonious -36dBm<1GHz -30dBm>1GHz
FM Noise 40dB
Adjacent Channel Power 70dB/60dB
Audio Distortion ≤5﹪
Receiver
Sensitivity(12dB SINAD) 0.25μV
Selectivity 60dB
Intermodulation 60dB
Spurious Response Rejection 65dB/70dB
Audio Power Output 500mW
Audio Distortion ≤3﹪(0.5W)



Free For

Adaptor

Free For

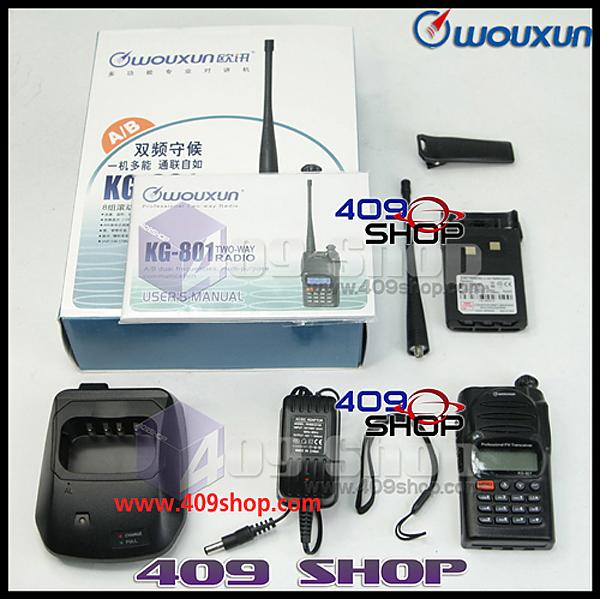

Each Set PACKAGE CONTAIN
  • 1 x WOUXUN KG-801 UHF 400-470Mhz (Model with Scrambler set)
  • 1 x 7.4V 1400mah Battery Pack.
  • 1 x UHF Antenna.
  • 1 x Wrist Strap
  • 1 x Belt Clip
  • 1 x English Manual
  • 1 x Free Earpiece
  • 1 x Desktop Charger *100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)

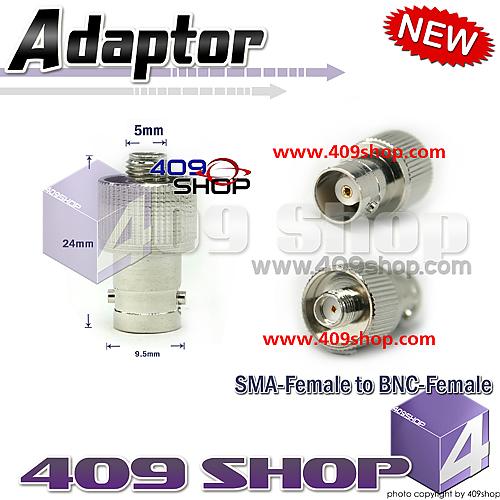

  • 1 x Adaptor S002B
