22-351203A+8-034+35+36+37+38

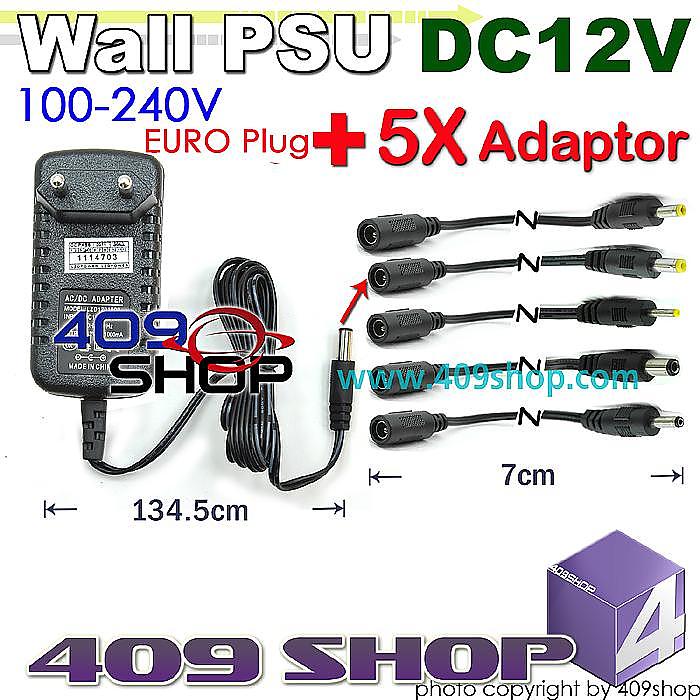

Wall PSU DC 12V 1.0A 2.1/5.5 MM (EURO plug)+DC CORD
Power supply unit DC 12V (EURO plug)
|
AC Input:
|
100-240V |
|
Output/Current:
|
DC + 12V / 1A |
|
Center pole of DC plug :
|
DC V+ (2.1 / 5.5mm) |
Feature:
- Suitable for Radio charger PSU option project.
- AUTO Switch between 100V and 240V Input
- + / - 5 % output voltage
- High Efficiency, Low Temperature,
- Small Size
- Over Load and Short Circuit Protection.
- Over Voltage Protection
- Auto-recovery after protection
With DC CORD
8-034: DC CORD 2.1/5.5MM to 2.5/0.8MM
8-035: DC CORD 2.1/5.5MM to 3.5/1.5MM
8-036: DC CORD 2.1/5.5MM to 4.0/1.7MM
8-037: DC CORD 2.1/5.5MM to 4.8/1.7MM
8-038: DC CORD 2.1/5.5MM to 5.5/2.5MM
|
DC Cord
|
Input plug:
|
Center pole of DC plug :
|
|
8-034
|
2.1mm / 5.5mm
|
DC V+ (2.5/0.8MM )
|
|
8-035
|
2.1mm / 5.5mm
|
DC V+ (3.5/1.5MM)
|
|
8-036
|
2.1mm / 5.5mm
|
DC V+ (4.0/1.7MM )
|
|
8-037
|
2.1mm / 5.5mm
|
DC V+ (4.8/1.7MM )
|
|
8-038
|
2.1mm / 5.5mm
|
DC V+ (5.5/2.5MM )
|
|
|
|
- 1 x Wall PSU DC 12V 1.0A 2.1/5.5 MM plug ( EURO plug ) +DC CORD
- 1 x 8-034 DC CORD 2.1/5.5MM to 2.5/0.8MM
- 1 x 8-035 DC CORD 2.1/5.5MM to 3.5/1.5MM
- 1 x 8-036 DC CORD 2.1/5.5MM to 4.0/1.7MM
- 1 x 8-037 DC CORD 2.1/5.5MM to 4.8/1.7MM
- 1 x 8-038 DC CORD 2.1/5.5MM to 5.5/2.5MM
|
