編號: FD-68U+ S002B
名稱: Feidxin FD-68 UHF 400-470Mhz Radio + earpiece + Adaptor
優惠價: HKD 450.00
貨幣單位:: HKD
可以寄往: 香港
0

詳情

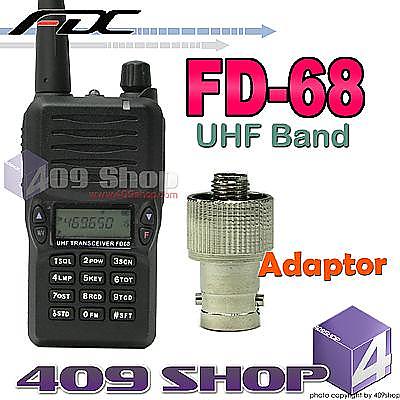

FD-68U+ S002B

FeiDaxin FD68 UHF 400-470mhz FM radio

+ Adaptor

Special features:

Built-in Led torch	Built-in FM radio	Super-mini size measuring 529830mm
LCD & keypad backlit display	Standby time:120hours 120	Built-in 50groups of CTCSS and 104+1 groups of DCS
Scan function	Keypad lock	Rainproof
Hi/Lo power select	Computer/manual Programme	High capacity Li-ion battery and rapid charger
Signal strength indicator	Battery indicator	Adjustable squelch level

Technical specifications

Model NO.	FD-68
General
Frequency Band		UHF
Frequency Range		400-470MHz
Channel Capacity	99
Operating Voltage	7.2V DC ±15%
Antenna Impedance	50Ω
Channel Spacing	12.5kHz/25kHz
Working Temperature	-30 ℃ - +60 ℃
Frequency Stability	±2.5 ppm
Size (Without Antenna)	50mm(W)x98mm(L)x30mm(D)
Weight(With Battery)	198g
Battery	1200 mAh(Li-ion)
Compatible With American Military Standard(MIL-STD-810C/D/E)
Transmitter（EIA-RS 316B STANDARD）
RF Power Output	4W
Modulation Type	F3E
Modulation Distortion	< 5%(300-3000Hz)
Max Freq Deviation	< 5kHz(1000kHz When 100%)
FM Noise	<=-45dB
Receiver
Sensitivity(12Db SINAD)	0.16μV
Selectivity	55dB
Adjacent Channel Selecivity	>=70dB
Noise Respond	>=60dB
FM Noise	45dB/40dB
Modulation Type	8K/16KOF3E
Audio Power Output	500mW When Distortion Less Than 10%
Audio Distortion	< 5%
Operating Bandwidth	±7.5kHz/3.75kHz
Standby Current	< 12mA

Free for Adaptor

Free for

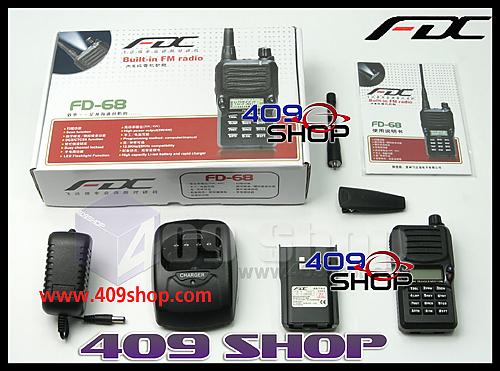

PACKAGE CONTAIN

1x FD-68 UHF(400-470Mhz) Body Colour :Black
1x 7.2v 1200mah Li-ion Battery Pack
1x Antenna
1x Belt Clip
1x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
1 x Adaptor S002B
