FD-790V+S002B

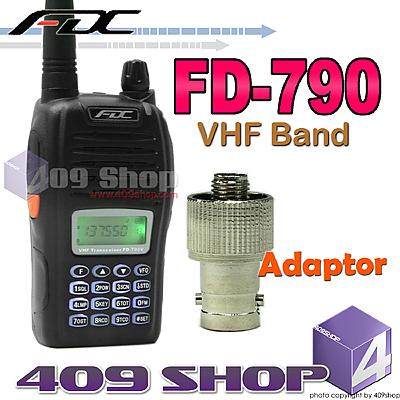

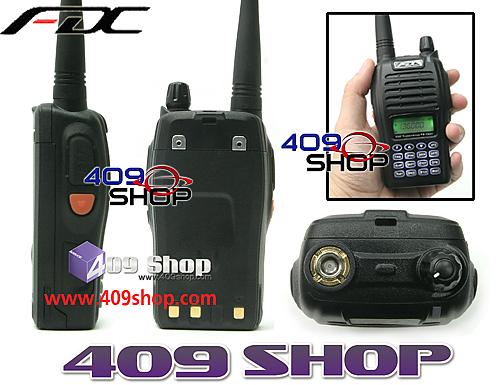

FeiDaxin FD790 VHF 136-174mhz FM radio
+ earpiece + Adaptor
Special features
-
Built-in FM radio
-
Computer/manual programme
-
Built-in 50 groups of CTCSS and 104+1 groups of DCS
-
Repeater function
-
High sensitivity receiver
-
Battery indicator
-
Scan function
-
Keypad lockout
-
Signal strength indicator
-
High/low power select (1 to 5W)
-
Standby time: 120 hours
-
Lower battery warning
-
LCD & keypad backlit display
-
Adjustable squelch level
-
12.5kHz/25kHz compatibility
-
Emergency alarm function
Technical specifications
| Model NO. |
FD-790V
|
|
|
General
|
|
Frequency Band
|
VHF
|
|
|
Frequency Range
|
136-174Mhz
|
|
|
Channel Capacity
|
99
|
|
Operating Voltage
|
7.2V DC ±15%
|
|
Antenna Impedance
|
50Ω
|
|
Channel Spacing
|
12.5kHz/25kHz
|
|
Working Temperature
|
-30 ℃ - +60 ℃
|
|
Frequency Stability
|
±2.5 ppm
|
|
Size (Without Antenna)
|
104(W)mmx62(L)mmx36mm(D)
|
|
Weight(With Battery)
|
250g
|
|
Battery
|
1300 mAh(Li-ion)
|
|
Transmitter
|
|
RF Power Output
|
5W/4W
|
|
Modulation Type
|
F3E
|
|
Modulation Distortion
|
< 5%(300-3000Hz)
|
|
Max Freq Deviation
|
< 5kHz(1000Hz When 100%)
|
|
FM Noise
|
<=-45dB
|
|
Receiver
|
|
Sensitivity(12Db SINAD)
|
0.16μV
|
|
Selectivity
|
55dB
|
|
Adjacent Channel Selecivity
|
>=70dB
|
|
Noise Respond
|
>=60dB
|
|
FM Noise
|
30dB/40dB
|
|
Modulation Type
|
8K/16KF3E
|
|
Audio Power Output
|
500mW When Distortion Less Than 10%
|
|
Audio Distortion
|
< 5%
|
|
Operating Bandwidth
|
±3.5kHz/3.75kHz
|
|
Standby Current
|
< 12mA
|
FREE FOR Adaptor

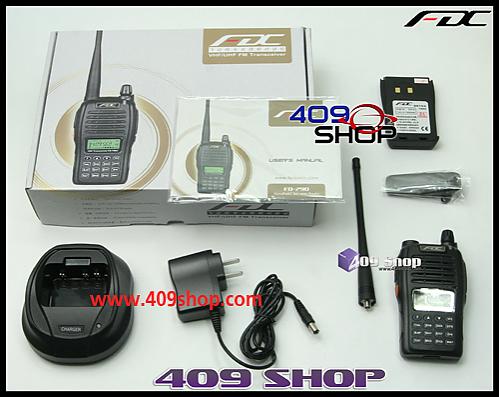

FREE FOR
|
|
- 1x FD-790 VHF(136-174Mhz) Body Colour :Black
- 1x 7.4v 1300mah Li-ion Battery Pack.
- 1x Antenna.
- 1x Belt Clip.
- 1x ENG Manual
- 1x Wall PSU with Charger
- 1x earpiece

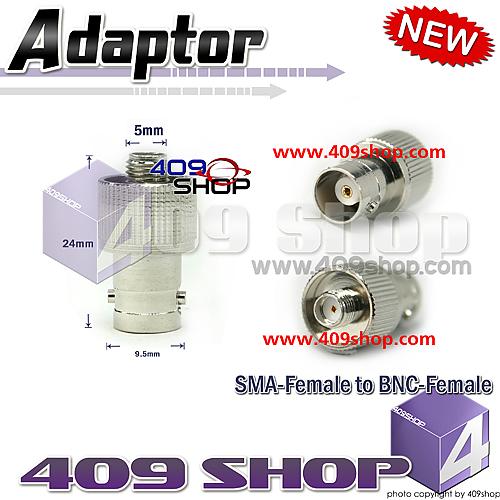

- 1x S002B Adaptor
