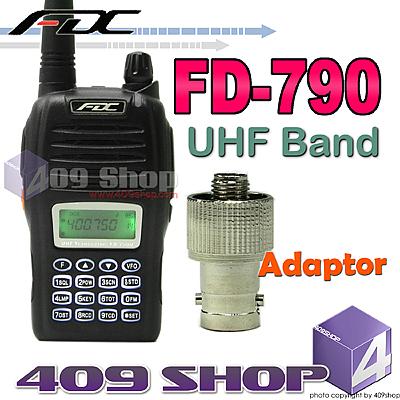

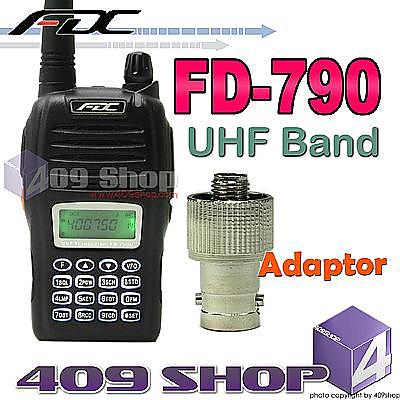

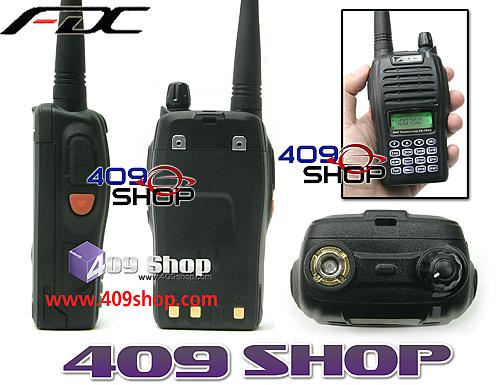

FeiDaxin FD790 UHF 400-470mhz FM radio

 +earpiece + Adaptor

Special features

• Built-in FM radio
• Computer/manual programme
• Built-in 50 groups of CTCSS and 104+1 groups of DCS
• Repeater function
• High sensitivity receiver
• Battery indicator
• Scan function
• Keypad lockout
• Signal strength indicator
• High/low power select (1 to 5W)
• Standby time: 120 hours
• Lower battery warning
• LCD & keypad backlit display
• Adjustable squelch level
• 12.5kHz/25kHz compatibility
• Emergency alarm function

Technical specifications

Model NO.		FD-790U
General
Frequency Band		UHF
Frequency Range		400-470MHz
Channel Capacity	99
Operating Voltage	7.2V DC ±15%
Antenna Impedance	50Ω
Channel Spacing	12.5kHz/25kHz
Working Temperature	-30 ℃ - +60 ℃
Frequency Stability	±2.5 ppm
Size (Without Antenna)	104(W)mmx62(L)mmx36mm(D)
Weight(With Battery)	250g
Battery	1300 mAh(Li-ion)
Transmitter
RF Power Output	5W/4W
Modulation Type	F3E
Modulation Distortion	< 5%(300-3000Hz)
Max Freq Deviation	< 5kHz(1000Hz When 100%)
FM Noise	<=-45dB
Receiver
Sensitivity(12Db SINAD)	0.16μV
Selectivity	55dB
Adjacent Channel Selecivity	>=70dB
Noise Respond	>=60dB
FM Noise	30dB/40dB
Modulation Type	8K/16KF3E
Audio Power Output	500mW When Distortion Less Than 10%
Audio Distortion	< 5%
Operating Bandwidth	±3.5kHz/3.75kHz
Standby Current	< 12mA

FREE FOR Adaptor

FREE FOR

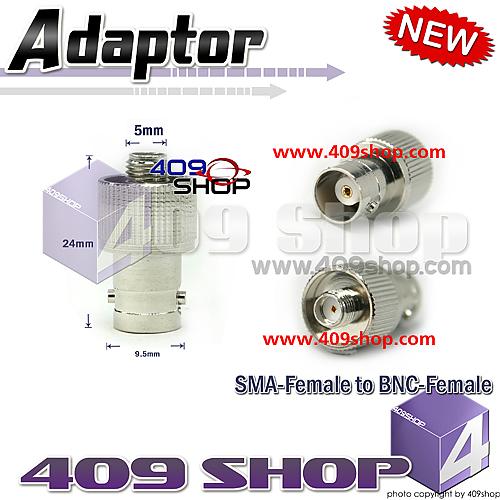

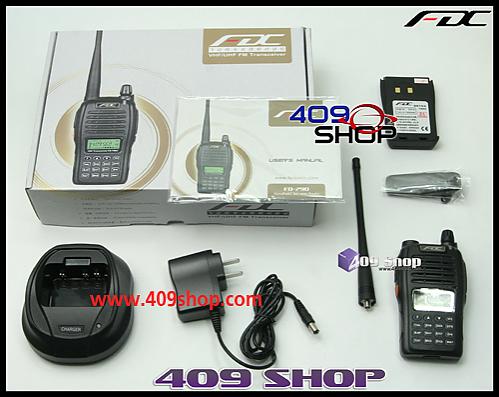

PACKAGE CONTAIN 1x FD-790 UHF(400-470Mhz) Body Colour :Black 1x 7.4v 1300mah Li-ion Battery Pack. 1x Antenna. 1x Belt Clip. 1x ENG Manual 1x Wall PSU with charger 1x earpiece 1x S002B Adaptor
