LT-5800 U + 4-001K

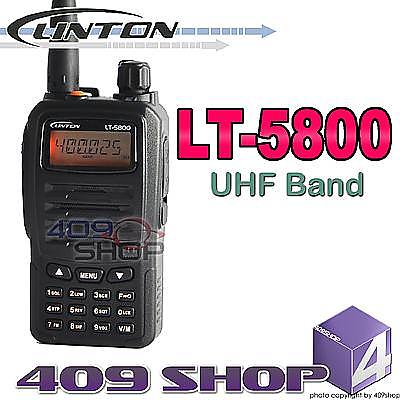

Linton LT5800 UHF 400 - 470Mhz Two Way Radio
Feature:
128 channels, 1200mAh Li-ion battery
DTMF encoder/decoder
Wide/Narrow band selectable
FM radio function
Transmit time limit
51 groups of CTCSS/214 groups of DCS
Alarm function
| General |
|
| Frequency range: |
UHF: 400-470MHz |
| Number of channel |
128 |
| Channel Spacing |
12.5/25.0 KHz |
| Working temperature |
7.4V |
| Battery type |
1200 mAh(Li-ion) |
| Average Battery Life(5-5-90 working circle) |
Around 10 hours |
| Frequency Stability |
±2.5 PPM |
| Working temperature |
-20 ~+60°C |
| Antenna Impedance |
50Ω |
| Size (exclude antenna &battery) |
98.3*57.7*28 mm |
| Weigth (with antenna &battery) |
220g |
| Transmitter |
|
| Power output |
U:4.0W/1.0W ,V:5.0W/1.0W |
| Modulation |
F3E |
| Spurious & harmonics |
-36dBm<1GHz -30dBm>1GHz |
| Squelch level |
40/45dB |
| Audio distortion |
≤5% |
| Modulation control |
±2.5 12.5KHz; ±5.0 25KHz |
| Audio response |
+1 to -3 dB |
| Receiver |
|
| Sensitivity |
≤0.30/0.20uV |
| Selectivity |
60/65dB |
| Inter-modulation |
65dB |
| spurious response frequency control |
70dB |
| Squelch level |
40/45dB |
| Audio power output |
500mW |
| Audio frequency distortion |
≤5% |
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
|

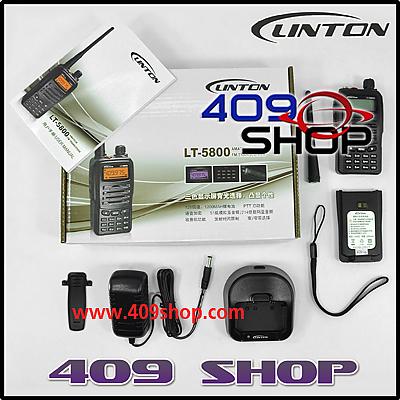

- 1x LT-5800 UHF (400-470Mhz)
- 1x 7.4v 1200mah Li-ion Battery Pack
- 1x Antenna 400-470Mhz
- 1x Belt Clip.
- 1x ENG Manual
- 1x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1x Earpiece
- 1 x WRIST STRAP
|
