CMX-400

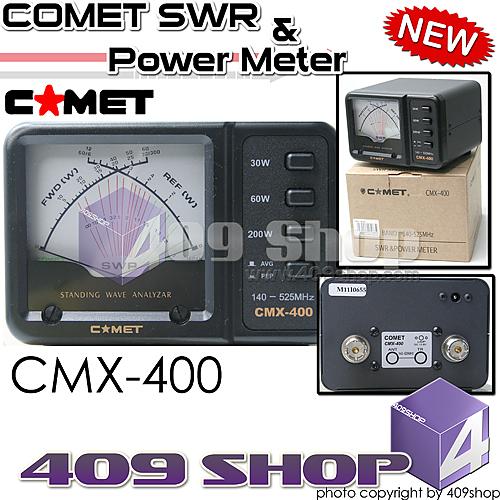

COMET SWR & POWER METER CMX-400
Another new meter joins the Comet family, here we have the all new CMX-400, up to 200 watts power handling on VHF/UHF 140~525Mhz. Large, clear cross needle display reads FWD/REF and SWR simultaneously, and to minimize power loss CMX-400 has a built in low loss sensor. The meter is very well illuminated in red and green.
- Comet CMX-400
- VHF/UHF SWR/Power meter
- Frequency Range - 140~525Mhz
- Power Handling - up to 200 Watts
- Power Ranges 30/60/200 Watts
- Impedance - 50 Ohms
- VSWR - 1.2 Or Less
- Insertion Loss - 0.2dB Or Less
- Min Power for SWR Measurement - approx 6 watts
- Connector SO-239 type
- Power requirements for Illumination - 11~15 Volts
- Dimensions - 120 x 80 x 105 mm WHD
- Weight - approx 630 g
- 1 x COMET SWR & POWER METER CMX-400
| |
|
