Amateur Handheld Transceivers

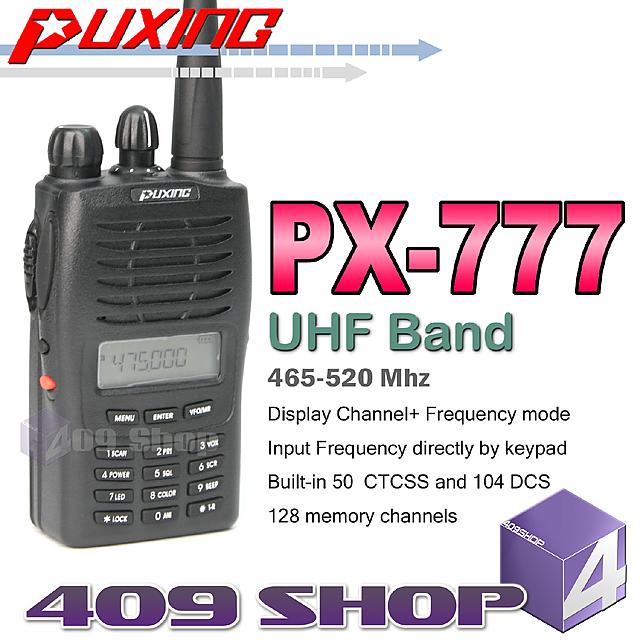

Puxing PX-777 UHF 465~520Mhz Transceiver + Prog Cable
- 128 Groups of memory channels
- Built-in 50 Groups of CTCSS and 104 Groups of DCS
- Wide(25kHz) and Narrow(12.5kHz) available
- Come with 1200mAh Li-ion battery
- Input Freq. By using keypad
- VOX built-in
- Scan function
- Three color LCD backlight display
- Emergency Alarm
- Programmable by PC
- Bell ring when receiving signal
- Priority Scan Function
- Adjust power Hi/Lo
- Switching between Channel/Freq.
- Adjust squelch level(0-9)
- Busy channel lockout
- Keypad lock
| General |
| Frequency Range |
PX-777(U)465-520MHz
|
| Channels |
128 |
| Channel Steps |
5k,10k,6.25k,12.5k,25k |
| Power Supply |
7.2V 1200mah LI-ion |
| Operating Temperature |
-20°C ~ +60°C |
| Communication Range |
3 ~6km |
| Dimension (H x W x D) |
100 x 55.5 x 31mm |
| Weight |
225g |
|
RX
Receiver
|
| Sensitivity |
<0.20µV |
| Selectivity |
65dB |
| Intermodulation Rejection |
60dB |
| AF Output |
500mW |
| Standby Current |
35mA |
| TX
Transmitter
|
| Power Output |
4W |
| Modulation Type |
F3E |
| Spurious Emission |
< -65dB |
| Transmit Current |
1300mA/750mA |
| Max. Deviation |
±5kHz |
| Modulation Distortion |
< 5% |
| Frequency Stability |
±2.5ppm |
This model without Scrambler & ANI code.

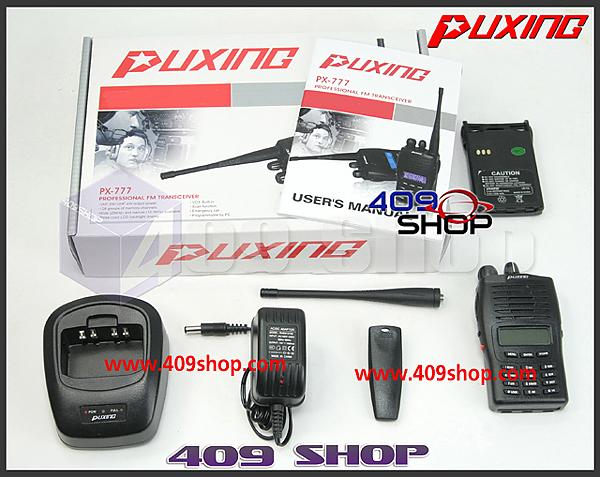

- 1 x PUXING PX-777 (UHF 465-520Mhz)
- 1 x 7.2v 1200mah Li-ion Battery Pack
- 1 x Antenna 465-520Mhz
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x PTT Earpiece for free

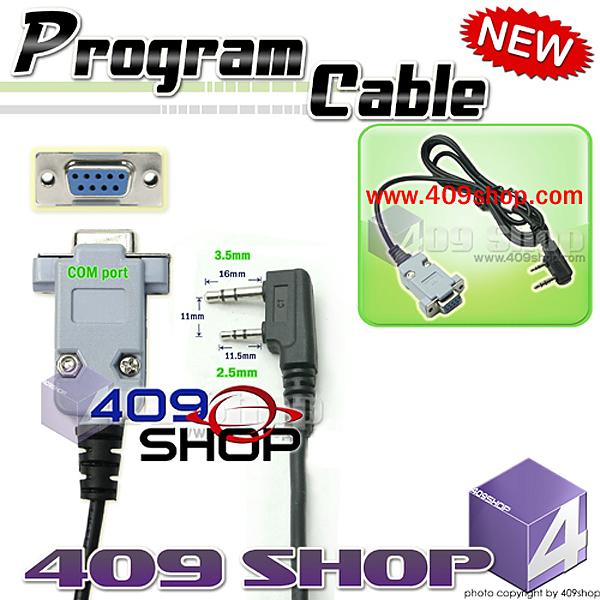

- 1 x Prog Cable
|
