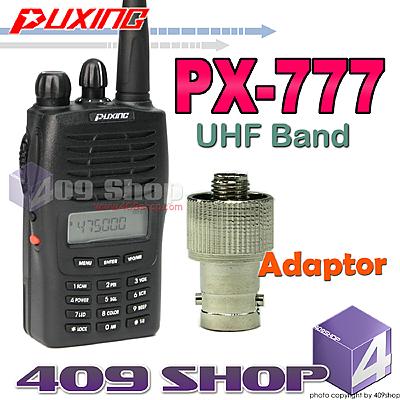

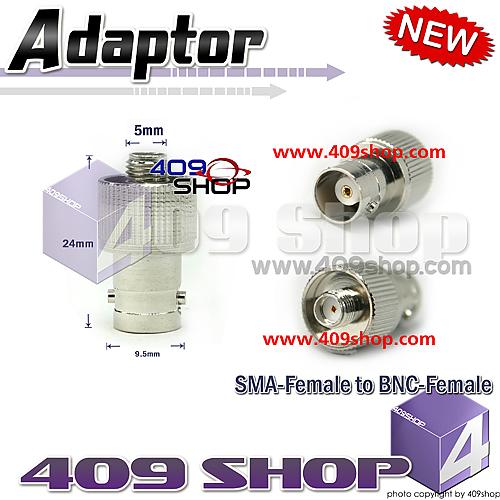

Puxing PX-777 UH 400-480Mhz UHF + Adaptor
Amateur Handheld Transceivers

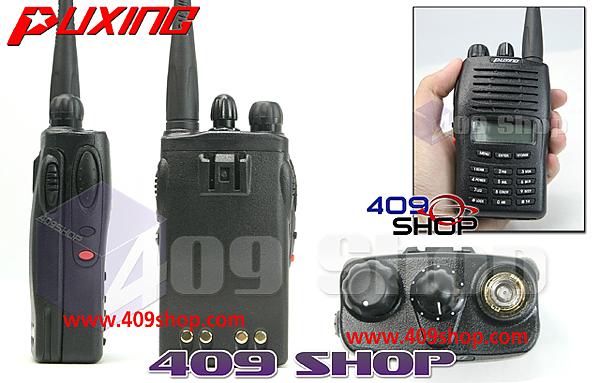

Puxing PX-777 UHF 400~480Mhz Transceiver
128 Groups of memory channels
Built-in 50 Groups of CTCSS and 104 Groups of DCS
Wide(25kHz) and Narrow(12.5kHz) available
Come with 1200mAh Li-ion battery
Input Freq. By using keypad
VOX built-in
Scan function
Three color LCD backlight display
Emergency Alarm
Programmable by PC
Bell ring when receiving signal
Priority Scan Function
Adjust power Hi/Lo
Switching between Channel/Freq.
Adjust squelch level(0-9)
Busy channel lockout
Keypad lock
General
Frequency Range
PX-777(UH)400-480MHz
Channels
128
Channel Steps
5k,10k,6.25k,12.5k,25k
Power Supply
7.2V 1200mah LI-ion
Operating Temperature
-20°C ~ +60°C
Communication Range
3 ~6km
Dimension (H x W x D)
100 x 55.5 x 31mm
Weight
225g
RX
Receiver
Sensitivity
<0.20µV
Selectivity
65dB
Intermodulation Rejection
60dB
AF Output
500mW
Standby Current
35mA
TX
Transmitter
Power Output
4W
Modulation Type
F3E
Spurious Emission
< -65dB
Transmit Current
1300mA/750mA
Max. Deviation
±5kHz
Modulation Distortion
< 5%
Frequency Stability
±2.5ppm
This model without Scrambler & ANI code.

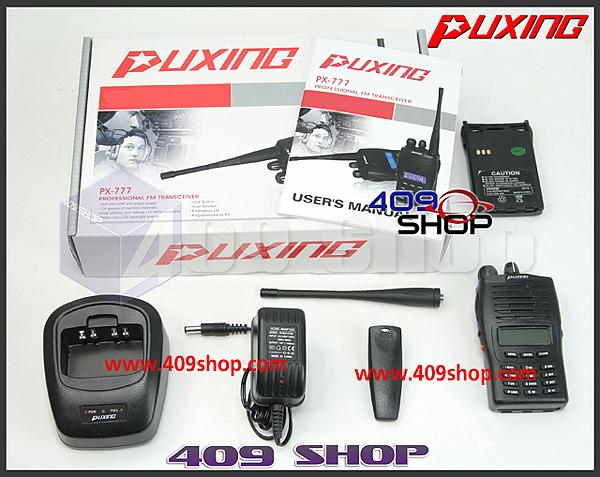

Each Set PACKAGE CONTAIN
1 x PUXING PX-777 (UHF 400-480Mhz)
