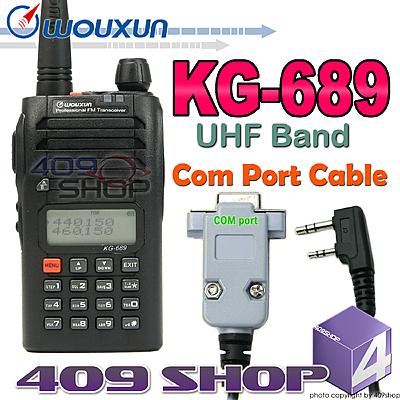

| KG689U + 6-004A
Amateur Handheld Transceivers
Transceivers with FM RADIO + Com Port Prog Cable
with Free eapiece
- Dualfrequency (UHF Dualfrequency )
- Dualdisplay and standby state
- DTMFencoding and DTMFdecoding
- Output power UHF 4W
- VOX (Level adjustable)
- 105 groups D.C.S./50 groups CTCSS
- All call, group call and select call.
- ANI ID (Caller ID)
- 128 memory channels
- Voice guide (Chinese /English)
- Channel steps(5K/6.25K/10K/12.5K/25K)
- Wide/Narrow brandwidth selection (12.5KHz/25KHz)
- Three color back light can be selectable .
- 1200mAh Li-ion batterypack and intelligentcharge
- Frequency/Channel/Frequency+Channel display mode
- Multi scan mode(TO/CO/SE)
- Calling ring and ring overtime auto answer
- Multi silent mode(QT/QTADT/QTXDT)
- Keyboard lock(Auto/Manual)
- Talk around function
- Busy channel lockout
- Programmable by computer or Keypad
- Menu/Channel reset
- FMradio function
|
General
|
|
Frequency Range
|
400-470MHZ
|
| Channels |
128
|
| Channel Steps |
5k,10k,6.25k,12.5k,25k
|
| Power Supply |
7.2V1200MAh Li-ion
|
| Operating Temperature |
-20°C ~ +60°C
|
| Antenna impedance |
50Ω
|
| Dimension (H x W x D) |
108 x 55 x 38mm
|
|
Channels
|
Co-channel or Simplex or Duplex
|
|
RX
|
| Sensitivity |
<0.20µV
|
| Selectivity |
65dB
|
| Intermodulation Rejection |
60dB
|
| AF Output |
500mW
|
| Standby Current |
35mA
|
|
|
| Power Output |
4W
|
| Modulation Type |
F3E
|
| Spurious Emission |
< -65dB
|
| Transmit Current |
700mA/350mA
|
| Max. Deviation |
±5kHz
|
| Modulation Distortion |
< 5%
|
| Frequency Stability |
±2.5ppm
|
Specifications from WOUXUN company
Free For Com Port Prog Cable

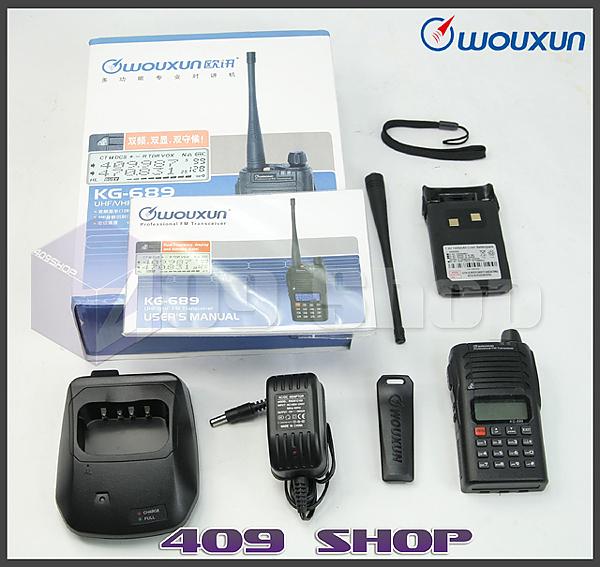

Free For

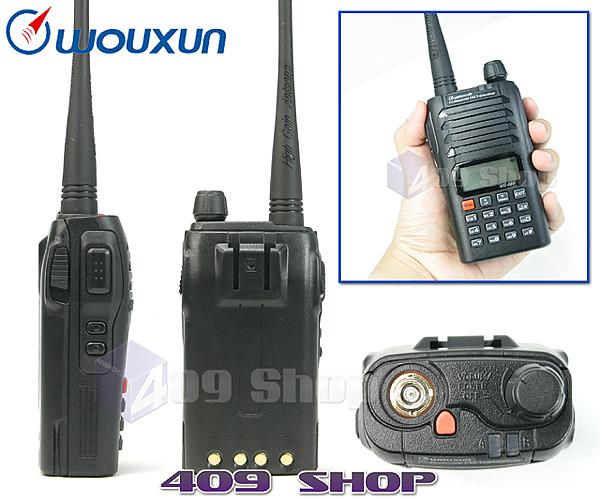

- 1x KG-689 (UHF 400-470MHZ)
- 1x 7.4 1400mah Battery Pack.
- 1x Antenna.
- 1x Wrist Strap1x Belt Clip
- 1x English Manual
- 1x Earpiece
- 1x Desktop Charger **100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)

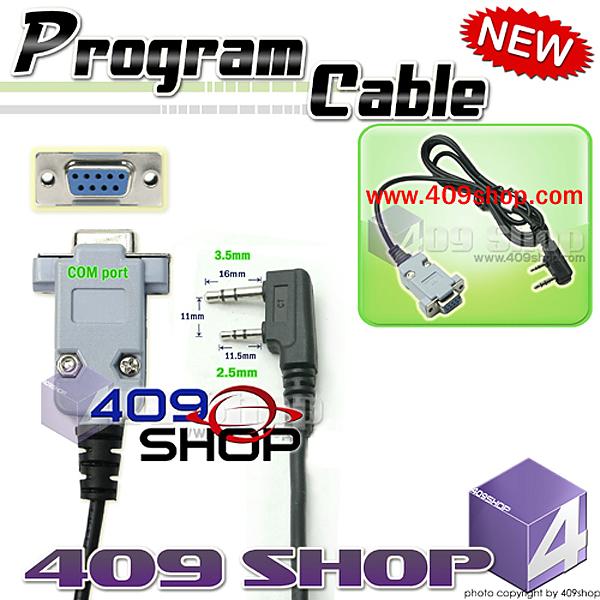

- 1x Com Port Program Cable 6-004A
|
|
|
|
