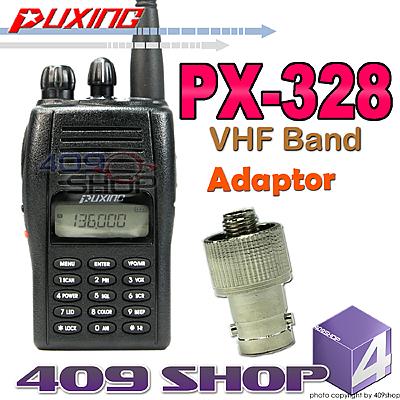

PUXING PX-328 VHF 136-174Mhz with Earpiece + Adaptor
GENERAL:
VHF 5W output power
128 memory channels
Built-in 50 CTCSS and 104 DCS
Wide (25kHz) and Narrow(12.5kHz) channel spacing
Programmable in separate channels
Come with 1200mAh Li-ion battery
Input Frequency directly by keypad
VOX built-in
Frequency Scan & CTCSS Scan
Three different scan type: TO/CO/SE
Three color LCD backlight display
Sound Alarm
Programmable by PC software
Bell ring when receiving signal
Priority Scan Function
Adjust power High/Low
Switching between Channel/VFO
Display Channel+ Frequency mode.
Adjust squelch level (0-9)
Busy channel lockout
Keypad lock
Reverse Frequency Function
Channel step 5k,10k,6.25k,12.5k,25k
Optional Frequency range: 400-470Mhz
Program alphanumeric channels name
DTMF encode
Self-program
VFO/MR key to store and delete channel
TECHNICAL SPECIFICATION:
Frequency Range:136~174MHz
Working Temperate －20℃―＋50℃
Operating Voltage DC 7.2V
Operate Mode:Simplex or Semi-duplex
Dimension 100mm×55mm×32mm (Not included Antenna)
Weight 220g (Including battery)
Antenna impedance 50Ω
TRANSMITTER:
Frequency Stability ±2.5PPM
Output Power ≦5W
Max Frequency Deviation ≦5KHz
Audio Distortion ≦3%
Modulation Character +3dB—-3dB
Adjacent Channel Power ≥65dB
Spurious Radiation ≤7.5UW
Occupied Bandwidth ≤16KHz
RECEIVER:
RF Sensitivity ＜0.2UV
Audio Distortion ≦3%
Audio Response +2dB—-10dB
Adjacent Channel Selectivity ≥60dB
Intermodulation Rejection ≥65dB
Spurious Response ≥70dB
Blocking ≥80dB

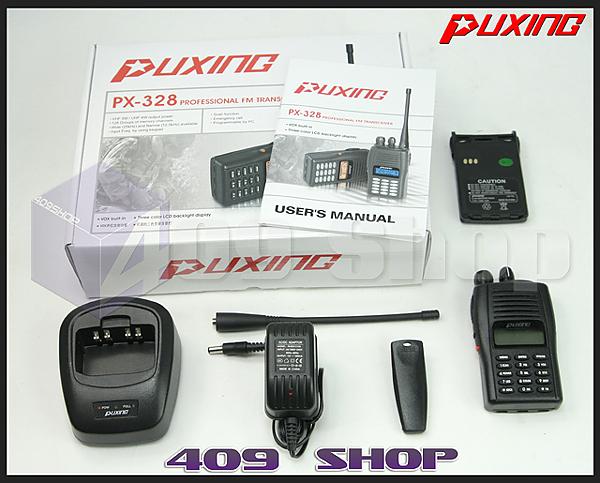

Each Set PACKAGE CONTAIN
1 x PUXING PX-328 (VHF 136-174Mhz)
1 x 7.2V 1200mah Li-ion Battery Pack
1 x VHF Antenna.
1 x Belt Clip.
1 x ENG Manual
1 x Earpiece
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)

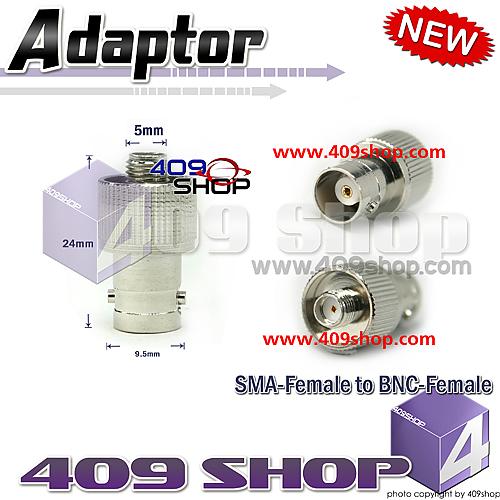

1 x Adaptor
