PX-328U+S002B

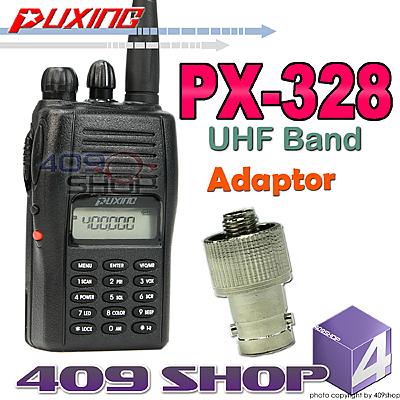

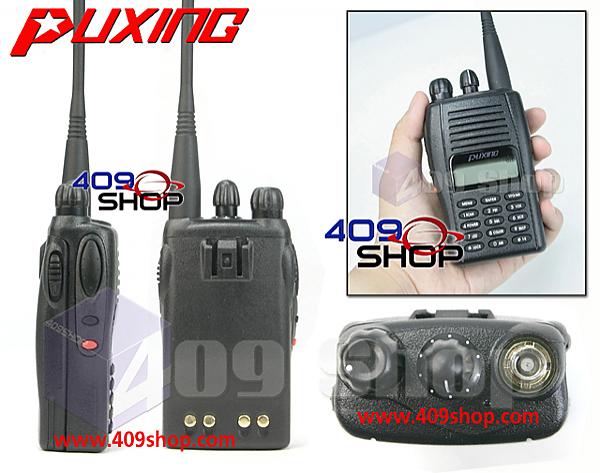

PUXING PX328 UHF 400-470Mhz with Earpiece + Adaptor

GENERAL:

• UHF 4W output power
• 128 memory channels
• Built-in 50  CTCSS and 104 DCS
• Wide (25kHz) and  Narrow(12.5kHz) channel spacing
• Programmable in separate channels
• Come with 1200mAh Li-ion battery
• Input Frequency directly by keypad
• VOX built-in
• Frequency Scan & CTCSS Scan
• Three different scan type: TO/CO/SE
• Three color LCD backlight display
• Sound Alarm
• Programmable by PC software
• Bell ring when receiving signal
• Priority Scan Function
• Adjust power High/Low
• Switching between Channel/VFO
• Display Channel+ Frequency mode.
• Adjust squelch level (0-9)
• Busy channel lockout
• Keypad lock
• Reverse Frequency Function
• Channel step 5k,10k,6.25k,12.5k,25k
• Optional Frequency range: 400-470Mhz
• Program alphanumeric channels name
• DTMF encode
• Self-program
• VFO/MR key to store and delete channel

  　

TECHNICAL SPECIFICATION:

• Frequency Range:400~470MHz
• Working Temperate －20℃―＋50℃
• Operating Voltage DC 7.2V
• Operate Mode:Simplex or Semi-duplex
• Dimension 100mm×55mm×32mm (Not included Antenna)
• Weight 220g (Including battery)
• Antenna impedance 50Ω

  　

TRANSMITTER:

• Frequency Stability ±2.5PPM
• Output Power ≦5W
• Max Frequency Deviation ≦5KHz
• Audio Distortion ≦3%
• Modulation Character +3dB—-3dB
• Adjacent Channel Power ≥65dB
• Spurious Radiation ≤7.5UW
• Occupied Bandwidth ≤16KHz

  　

RECEIVER:

• RF Sensitivity ＜0.2UV
• Audio Distortion  ≦3%
• Audio Response +2dB—-10dB
• Adjacent Channel Selectivity ≥60dB
• Intermodulation Rejection ≥65dB
• Spurious Response ≥70dB
• Blocking  ≥80dB

Free For

Adaptor

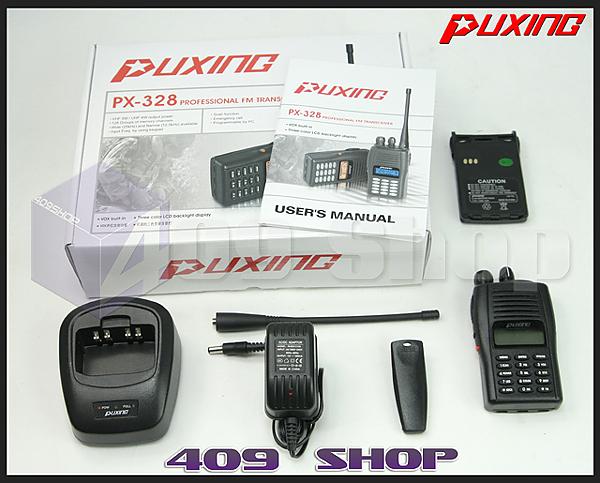

Each Set PACKAGE CONTAIN

1 x PUXING PX-328 (UHF 400-470Mhz)
1 x 7.2V 1200mah Li-ion Battery Pack
1 x UHF Antenna.
1 x Belt Clip.
1 x ENG Manual
1 x Earpiece
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)

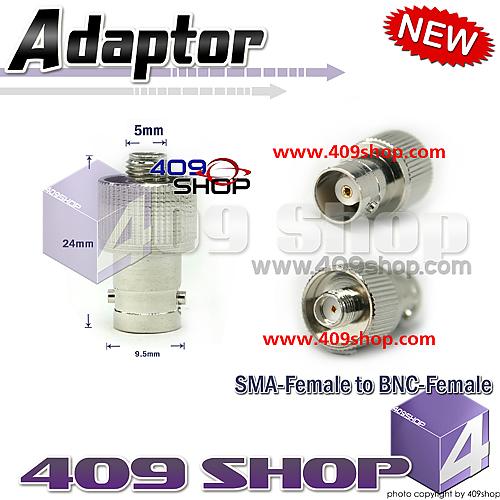

1 x Adaptor
