TH2R UH

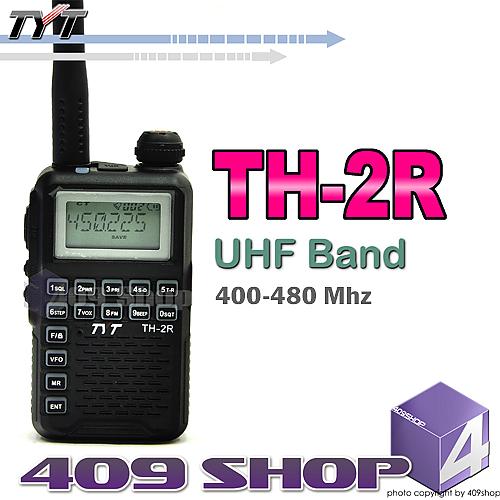

TYT TH-2R UH 400-480Mhz Small Radio x 1 set
1) CH 108 , All channel scan and priority channel scan 2) Scan types :Carrier, time and search 3) Busy channel lock: carrier/QT/DQT 4) VOX sensitivity:0-9 levels adjustable 5) Transmitter power:High power and low power switchable 6) Squelch opening threshold: Receive field intensity should accurate (use the sq level to show the intensity) 7) Led backlight: On/off/automatic 8) Beep set: Beep on/off 9) Keypad lock function: Manual/auto optional 10) Transmit limited: off-270 optional 11) Offset set:0-xxmhz optional (confirm the max offset according to the band after adjusting) 12) CTCSS and DCS setting 1. Receive only 2. Transmit only 3. 50 CTCSS and 104 DCS 13) +/-offset:+/-frequency optional 14) Offset step optional:12.5k/25k 15) Use Dot Segment to display on LCD 16) Select the LED/emergency call by programming software 17) Volume control knob to turn on/off the power 18) PC programming and store channel 19) Can use car charger 20) DC 3.7V single li-ion battery compatible with mobile phone battery 21) MINI compact size 84*48*25 cm 22) Output power: UH 400-480mhz 2w 23) With most competitive price 24) CHANNEL STEP : 6.25khz/12.5khz/25khz/50khz/100khz
Specifications:
Frequency Range |
UH 400-480MHz |
Operating Voltage |
3.6V |
Operating Temperature |
-30c~+60c |
Channel step |
6.25kz/12.5khz/12.5khz/50khz/100khz |
Antenna Impedance |
50 ohm |
Dimension(without antenna&battery(L×W×H) |
84*48*25(mm) |
Weight(with antenna&battery) |
200g |
Transmitter |
RF Power Output |
UHF:2W/1W |
FM Noise |
55dB |
Adjacent Channel Power |
55dB/60dB |
Receiver |
Selectivity |
60dB |
Intermodulation |
60dB |
Spurious Response Rejection |
40dB |

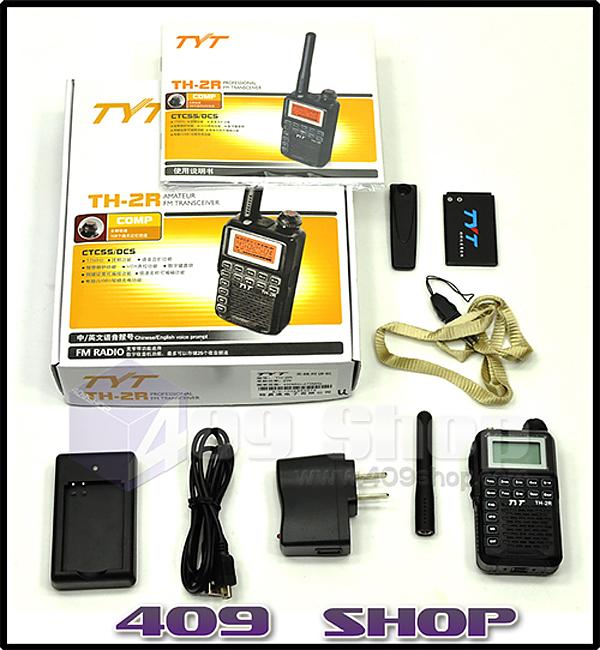

- 1 x TH-2R (UH 400-480Mhz)
- 1 x 3.7V 1300mah Li-ion Battery
- 1 x UHF Antenna.
- 1 x Belt Clip.
- 1 x ENG Manual
- 1 x DeskTop Charger with Cable /PSU (Provide PSU plug for your Country)
- 1 x Earpiece
- 1 x WRIST STRAP
| | |
Spare Battery : 1300MAH
Charger with PSU : Desktop charger
Programming Cable : USB cable |
|
