TH2R VHF

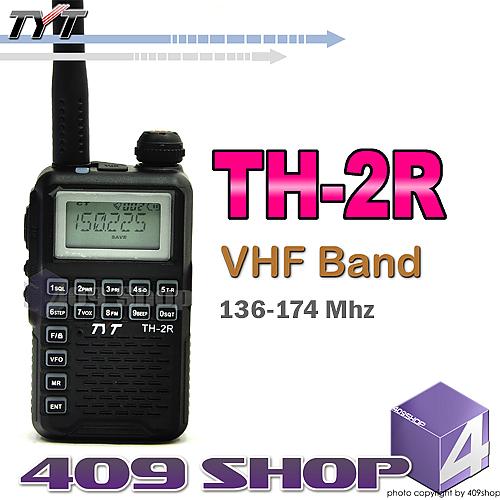

TYT TH-2R VHF 136-174Mhz Small Radio x 1 set
1) CH 108, All channel scan and priority channel scan
2) Scan types :Carrier， time and search
3) Busy channel lock: carrier/QT/DQT
4) VOX sensitivity:0-9 levels adjustable
5) Transmitter power：High power and low power switchable
6) Squelch opening threshold: Receive field intensity should accurate (use the sq level to show the intensity)
7) Led backlight: On/off/automatic
8) Beep set: Beep on/off
9) Keypad lock function: Manual/auto optional
10) Transmit limited: off-270 optional
11) Offset set:0-xxmhz optional (confirm the max offset according to the band after adjusting)
12) CTCSS and DCS setting
1. Receive only
2. Transmit only
3. 50 CTCSS and 104 DCS
13) +/-offset:+/-frequency optional
14) Offset step optional:12.5k/25k
15) Use Dot Segment to display on LCD
16) Select the LED/emergency call by programming software
17) Volume control knob to turn on/off the power
18) PC programming and store channel
19) Can use car charger
20) DC 3.7V single li-ion battery compatible with mobile phone battery
21) MINI compact size 84*48*25 cm
22) Output power: VHF 136-174mhz 2w
23) With most competitive price
24) CHANNEL STEP : 6.25khz/12.5khz/25khz/50khz/100khz
|
Specifications:
| Frequency Range |
VHF 136-174MHz |
| Operating Voltage |
3.6V 1300mah(Li-ion) |
| Operating Temperature |
-30c~+60c |
| Channel step |
6.25kz/12.5khz/12.5khz/50khz/100khz |
| Antenna Impedance |
50 ohm |
| Dimension(without antenna&battery(L×W×H) |
84*48*25(mm) |
| Weight(with antenna&battery) |
200g |
|
Transmitter |
| RF Power Output |
VHF:2W/1W |
| FM Noise |
55dB |
| Adjacent Channel Power |
55dB/60dB |
|
Receiver |
| Selectivity |
60dB |
| Intermodulation |
60dB |
| Spurious Response Rejection |
40dB |
- 1 x TH-2R (VHF 136-174Mhz)
- 1 x 3.7V 1300mah Li-ion Battery
- 1 x VHF Antenna.
- 1 x Belt Clip.
- 1 x ENG Manual
- 1 x DeskTop Charger with Cable /PSU (Provide PSU plug for your Country)
- 1 x Earpiece
- 1 x WRIST STRAP
| |
| | |
