編號: KG-699E U w/1.7A+2-033

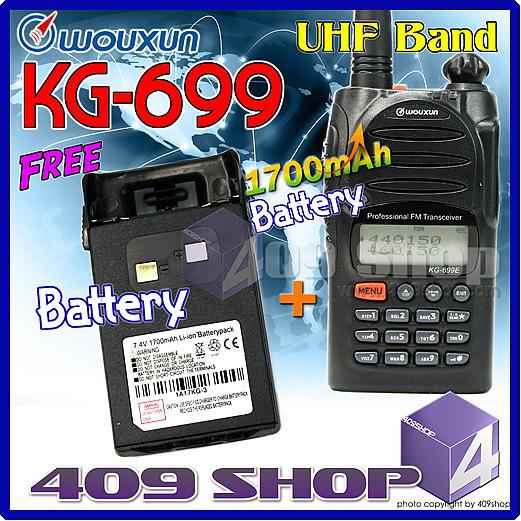

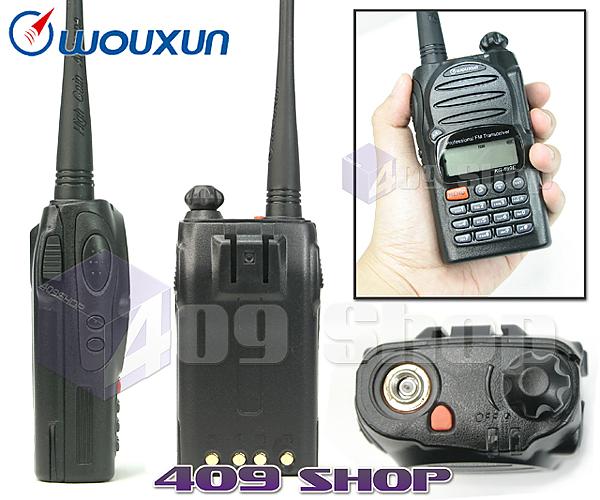

名稱: Wouxun KG-699E U 400-470mhZ w/1.7A+battery

優惠價: HKD 830.00
貨幣單位:: HKD
數量: 0
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情


KG699E U w/1.7A battery+2-033



  (New) Handheld Two Way Radio

KG-699E (Single Knob ,Version : advanced ) have passed CE approval+Earpiece+Battery



Main Features
. UHF Dual frequencies
. Dual display and standby modes
. 128 memory channels
. 1 group scrambler
. Channel name edit available
. Output power UHF 5W/1W
. High/Low power can changeable by top key
. VOX (Level adjustable)
. DTMF encoding and DTMF decoding
. 105 groups D.C.S/50 groups CTCSS
. DCS/CTCSS of RX and TX can be set respectively
. Reverse frequency function
. Busy channel lockout
. Distant alarm
. ANI (Caller ID)
. Multi scan mode (TO/CO/SE)
. Inspection, monitor, stun, kill and emergency alarm
. All calls, group calls and selective calls
. Calling ring and ring overtime auto answer
. Multi silent mode (QT/QTADT/QTXDT)
. Channel steps (5K/6.25K/10K/12.5K/25K)
. Wide/Narrow bandwidth selection (25KHz/12.5KHz)

Features
. 5/2 tone and 1750Hz burst tone
. Priority scan
Remark: If the radio with above optional features, it will available 200
memory channels and 1 group scrambler.

Super Features
. Digital FM radio with frequency display
. Three color LCD backlight display
. Frequency/Channel/Frequency+Channel display mode
. Voice guide (Chinese / English)
. Side key programmable
. Menu/Channel reset
. Keyboard lock (Auto/Manual)
. Wireclone function
. Programmable by computer
. Input frequency by using keypad
. PC software disable frequency input
. Come with 1300mAh Li-ion battery and intelligent charger

Technical indicators:
KG-699E Technical Specification

Frequency Range UHF: 400-470mHZ
Channel Capacity 128(200)
Channel Spacing 25/12.5KHz
Maximum Deviation ±5KHz to 25KHz ±2.5KHz to 12.5KHz
Frequency Stability ±2.0ppm
Operating Voltage 7.4V
Operating Temperature -30℃~+60℃
Battery 1300mAh(Li-ion)
Standby Current 50mA
Antenna Impedance 50Ω
Dimension(without antenna&battery(L×W×H) 105×62×39(mm)
Weight(with antenna&battery) 260g
Transmitter
RF Power Output UHF:5W/1W
Modulation 16KфF3E/11KфF3E
Spurious and Harmonious -36dBm<1GHz -30dBm>1GHz
FM Noise 40dB
Adjacent Channel Power 70dB/60dB
Audio Distortion ≤5﹪
Receiver
Sensitivity(12dB SINAD) 0.25μV
Selectivity 60dB
Intermodulation 60dB
Spurious Response Rejection 65dB/70dB
Audio Power Output 500mW
Audio Distortion ≤3﹪(0.5W)




Compare list of different configuration
KG-699E Main features The popular The upgrade The advanced
Memory channels 128 128 200
Scrambler available Optional 8 groups
DTMF encoding and DTMF edcoding
VHF Dual frequencies or UHF Dual frequencies
Dual display and standby modes
Output power VHF 5W/1W UHF 4W/1W
105 groups DCS/50 groups CTCSS
Wide/Narrow bandwidth selection (25KHz/12.5KHz)
ANI(Caller ID)
PTT ID
TOT(Time-out timer)
VOX (Level adjustable)
Busy channel lockout(BCL)
Reverse frequency function
Distant alarm
All calls, group calls and selective calls
Channel steps(5K/6.25K/10K/12.5K/25K)
Channel name edit available
Multi scan mode(TO/CO/SE)
Clone radio-to-radio
FM Radio
Inspection,monitor,stun,kill and emergency alarm
DCS/CTCSS of RX and TX can be set respectively
5 tones and 2 tones
1750Hz burst tone
Priority scan






Free for Battery





Free for

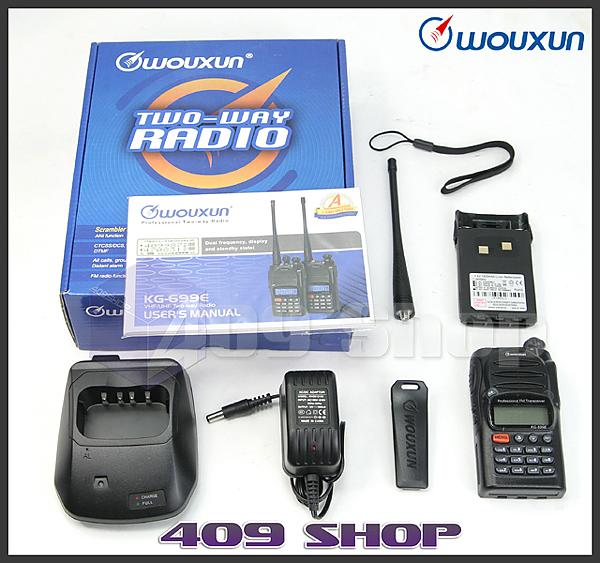

Each Set PACKAGE CONTAIN
  • 1x KG-699E UHF (400-470MHZ) ,Version : advanced

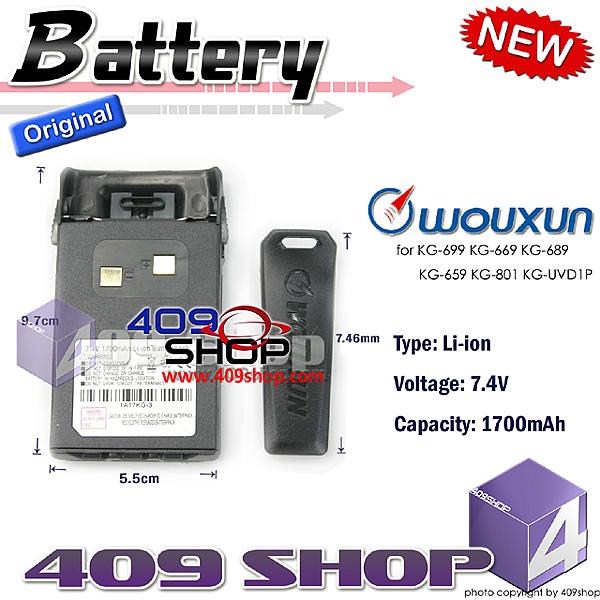

  • 2x 7.4 1700mah Battery Pack.
  • 1x 400-470Mhz Antenna.
  • 1x Belt Clip.
  • 1x ENG Manual
  • 1x Desktop Charger (100~240V)
Power transformer (2pin USA or 3pinUK or 2pin EURO
