編號: TG-K4AT-LV +2-067
名稱: QUANSHENG TG-K4AT VHF 136-174MHz + Earpiece +battery

優惠價: HKD 550.00
貨幣單位:: HKD
數量: 0
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情


TG-K4AT VHF + 2-067

QUANSHENG

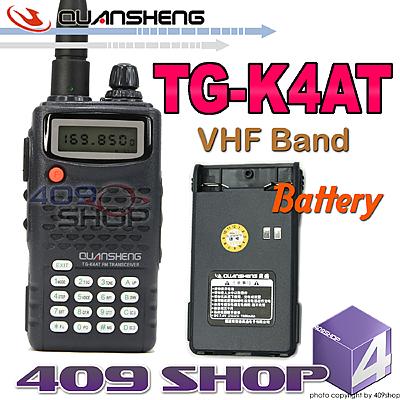

TG-K4AT VHF 136-174MHz Professional Ham Radio + Battery

Professional Ham Radio VHF 136-174MHz 5W

Product Description

Specifications:
1) Sound reminding function (English)
2) CTCSS with 39 codes
3) Store channel: 99
4) Auto scan
5) Large screen LCD
6) Lamp function, convenient for darkness operating
7) VFO programmed (direct input the frequency of you need from keypad)
8) Switch the power with HI and LOW
9) Channel spacing: 5KHz, 10KHz, 12.5KHz, 25KHz
10) Keypad lock
11) Monitor function
12) Low-battery warning
13) Modem pattern: Frequency modulation
14) Automatic power save mode
15) Output power: 4 - 5W
16) Large output power realizes long distance communication
17) Large-capacity battery
18) Earphone/Microphone/Auto-charger rabbet, expediency for answering and charging
19) Human system engineering, perfect handle


High QUANTITY,100% brand new.









General
 Frequency Range

(TG-4AT VHF ) 136-174 MHZ

 Channels
99
 CTCSS
38 tone
 Channel Steps
5、10、12.5、25kHz
 Power Supply
7.2V 1100mah Li-ion
 Operating Temperature
-5°C ~ +60°C
 Antenna connect
SMA(SMA-J)
 Dimension (H x W x D)
89x 53 x29mm
 Charger Time
8Hours(100MA)
 Standby Time
18hours
 Weight
220g
Receiver
 Sensitivity
<0.18µV
 Selectivity
65dB
 Intermodulation Rejection
60dB
 AF Output
500mW
 Standby Current
18mA
Transmitter
 Power Output
5W
 Modulation Type
F3E
 Spurious Emission
< -60dB
 Transmit Current
800mA
 Max. Deviation
±5kHz
 Modulation Distortion
< 5%
 Frequency Stability
±2.5ppm




























Free for

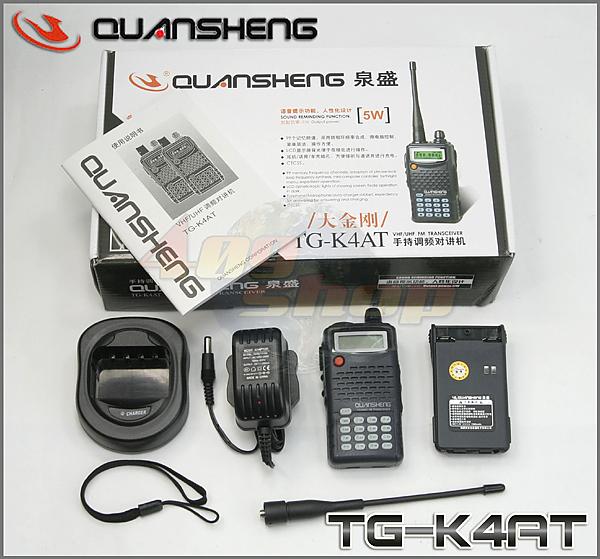

Each Set PACKAGE CONTAIN

  • 1 x TG-K4AT (VHF 136-174 MHZ)

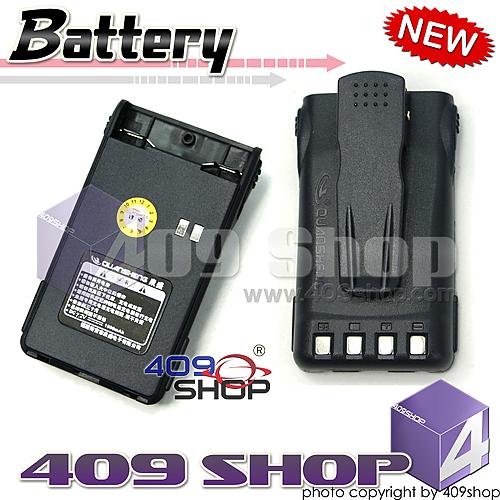

  • 2 x 7.4V 1500mah Li-ion Battery
  • 1 x SMA Antenna.
  • 1 x Wrist Strap
  • 1 x Belt Clip
  • 1 x English Manual
  • 1 x Earpiece
  • 1 x Desktop Charger *
    *100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)
