TGK4AT UHF + 41-12K

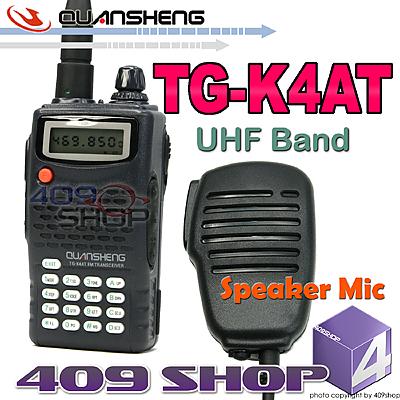

QUANSHENG TG-K4AT UHF 400-470MHz Ham Radio +Earpiece+Speaker Mic
QUANSHENG
Professional Ham Radio UHF 400-470MHz 5W
Product Description
Specifications:
1) Sound reminding function (English)
2) CTCSS with 39 codes
3) Store channel: 99
4) Auto scan
5) Large screen LCD
6) Lamp function, convenient for darkness operating
7) VFO programmed (direct input the frequency of you need from keypad)
8) Switch the power with HI and LOW
9) Channel spacing: 5KHz, 10KHz, 12.5KHz, 25KHz
10) Keypad lock
11) Monitor function
12) Low-battery warning
13) Modem pattern: Frequency modulation
14) Automatic power save mode
15) Output power: 4 - 5W
16) Large output power realizes long distance communication
17) Large-capacity battery
18) Earphone/Microphone/Auto-charger rabbet, expediency for answering and charging
19) Human system engineering, perfect handle
|
General
|
|
Frequency Range
|
(TG-4AT UHF)400 ~470MHz
|
| Channels |
99
|
| CTCSS |
38 tone
|
| Channel Steps |
5、10、12.5、25kHz
|
| Power Supply |
7.2V 1100mah NI-HM
|
| Operating Temperature |
-5°C ~ +60°C
|
| Antenna connect |
SMA(SMA-J)
|
| Dimension (H x W x D) |
89x 53 x29mm
|
| Charger Time |
8Hours(100MA)
|
| Standby Time |
18hours
|
| Weight |
220g
|
|
Receiver
|
| Sensitivity |
<0.18µV
|
| Selectivity |
65dB
|
| Intermodulation Rejection |
60dB
|
| AF Output |
500mW
|
| Standby Current |
18mA
|
|
Transmitter
|
| Power Output |
5W
|
| Modulation Type |
F3E
|
| Spurious Emission |
< -60dB
|
| Transmit Current |
800mA
|
| Max. Deviation |
±5kHz
|
| Modulation Distortion |
< 5%
|
| Frequency Stability |
±2.5ppm
|
Specifications by QUANSHENG factory.
Free for
-
1 x Quansheng TG-K4AT (UHF 400-470Mhz)
-
1 x 7.2v 1100mah Battery Pack
-
1 x SMA Antenna.
-
1 x Belt Clip.
-
1 x ENG Manual
-
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
-
1 x Earpiece
-
1 x WRIST STRAP

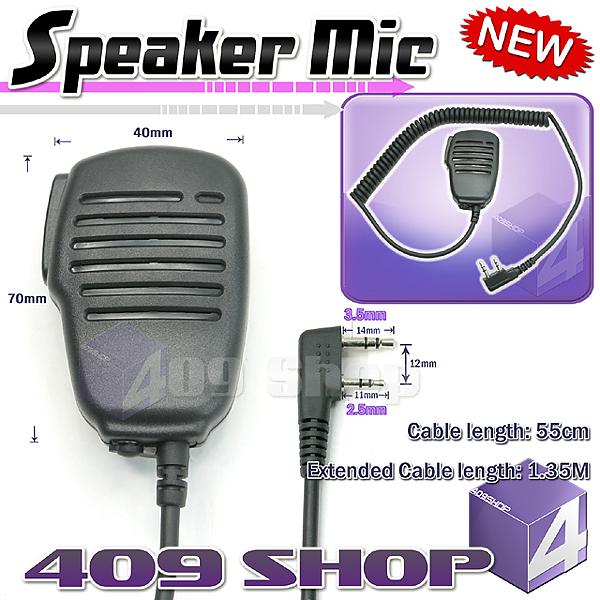

- 1 x Speaker Microphone
|
|
|
|
