THF2 VHF+4-001K+41-12K

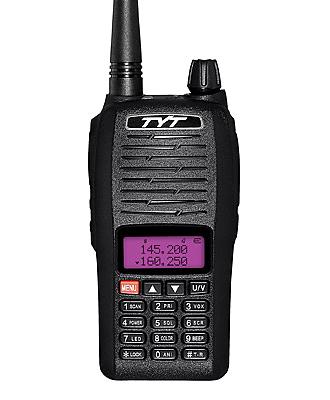

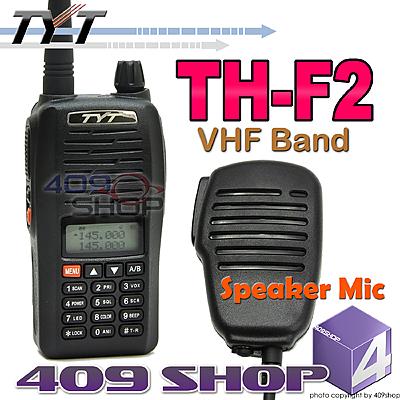

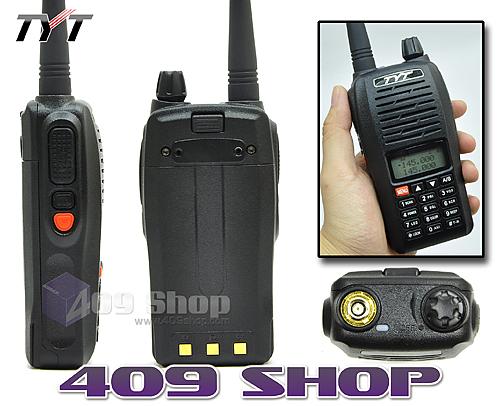

TYT TH-F2 VHF 136-174Mhz Two-way radio + Speaker Mic
professional handheld dual-frequency, dual-standby, dual-display two way radio which has optional functions like MSK/DTMF/2Tone/5Tone, ect.
Main Functions:
-
ANI code
-
Voice prompt
-
MSK/DTMF/2tone/5tone
-
Emergency Call
-
Multi-Scan Function
-
Multi-band selection
-
VOX Grade selective
-
Voice companding function
-
TOT (Time-out-timer)
-
End-tone Elimination
-
Hi/Low power selective
-
Digital FM radio receiver
-
Keypad lock voice prompt
-
VOX sensitivity Adjustable
-
0－9 grade Squelch selective
-
Tri-color backlight (blue, purple, orange)
-
Direction of differ frequency, Frequency difference set
-
Full-CH/FR mode/Self-program/Online program/manual adjustor
-
Manual / Electrical transfer (signaling frequency offset, power, sensitivity)
Technical parameters
|
Item number
|
TH-F2
|
|
General
|
|
Frequency Range
|
136-174Mhz
|
|
Channel No.
|
128
|
|
Frequency Stability
|
±2.5PPm
|
|
Antenna
|
High gain antenna
|
|
Antenna Impedance
|
50Ω
|
|
Operating Voltage
|
DC 7.2V(Rechargeable Li-ion battery)
|
|
Mode of operation
|
Simple or semi-duplex
|
|
Dimensions（W×H×D）
|
120mm×54mm×32mm
|
|
Transmitter
|
|
Output power
|
≥4W(H) ≥0.5W(L)
|
|
Modulation Mode
|
16kΦF3E/ 11kΦF3E
|
|
Maximum deviation
|
<5kHz/<2.5KHZ
|
|
Spurious Radiation
|
<7μW
|
|
Adjacent Ch. power
|
≥65dB/≥60db
|
|
Pre-emphasis characteristics
|
6db
|
|
Current
|
≤1.6A(5W)
|
|
CTCSS/DCS deviation
|
0.5kHZ+/-.01kHZ 03kHZ+/-0.1kHZ
|
|
Intermediation sensitivity
|
8-12mv
|
|
Intermediation distortion
|
<10%
|
|
Receiver
|
|
RF Sensitivity
|
-122dbm(12db SINAD)
|
|
Audio power
|
>0.5W
|
|
Audio Distortion
|
≤10%
|
|
Intermediation
|
≥60dB ≥55db
|
|
Selectivity
|
≥65dB ≥60db
|
|
Spurious Rejection
|
≥65db
|
|
Blocking
|
≥85
|
Free for

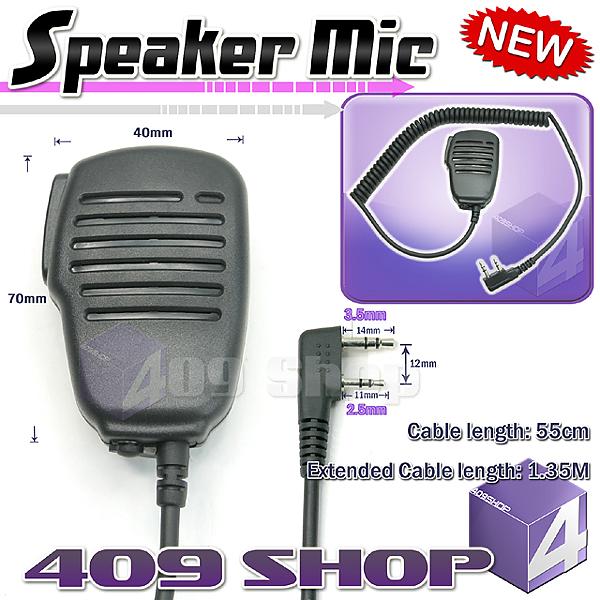

Speaker Microphone

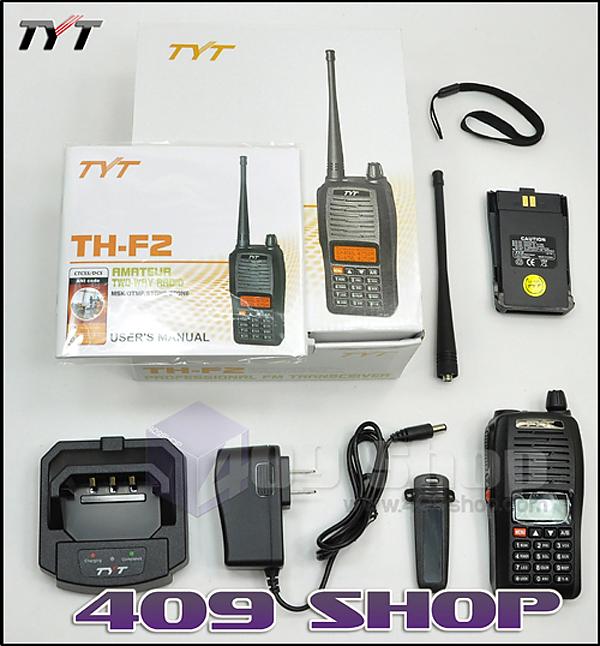

Free for
-
1 x TYT TH-F2 (VHF 136-174Mhz)
-
1 x 7.4v 1500mah Li-ion Battery Pack
-
1 x VHF Antenna
-
1 x Belt Clip.
-
1 x ENG Manual
-
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
-
1 x Earpiece
- 1 x Speaker Microphone
|
|
|
