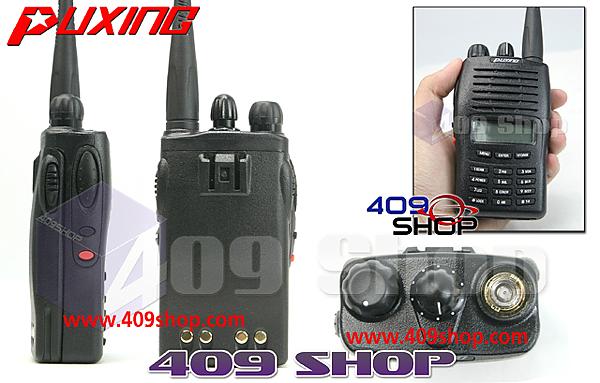

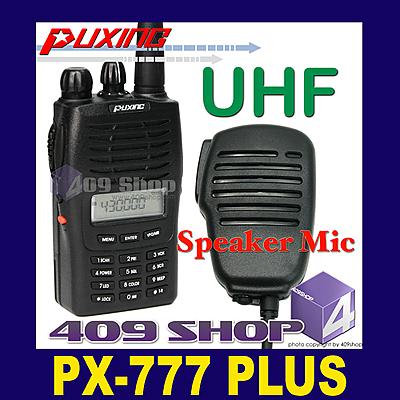

PUXING PX-777 PLUS UHF 400-470MHZ Radio + earpiece + Speaker Mic

1.ANI CODE(PTT ID)
2.Scrambler
3.UHF 4W output power
4.128 memory channels
5.Built-in 50 CTCSS and 104 DCS
6.Wide (25kHz) and Narrow(12.5kHz) channel spacing programmable in separate channels
7.Come with 1200mAh Li-ion battery
8.Input Frequency directly by keypad
9.VOX built-in
10.Frequency Scan & CTCSS Scan
11.Three different scan type: TO/CO/SE
12.Three color LCD backlight display
13.Sound Alarm
14.Programmable by PC software
16.Priority Scan Function
17.Adjust power High/Low
18.Switching between Channel/VFO
19.Display Channel+ Frequency mode.
20.Adjust squelch level (0-9)
21.Busy channel lockout
22.Keypad lock
23.Reverse Frequency Function
24.Channel step 5k,10k,6.25k,12.5k,25k
25.Program alphanumeric channels name
26.Self-program
27.Voice Annunciation
28.CE/FCC approved
29. 400-470MHZ
　

TECHNICAL:

• Frequency Range 400-470MHz
• Working Temperate －20℃―＋50℃
• Operating Voltage DC 7.2V
• Operate Mode Simplex or Semi-duplex
• Dimension 100mm×55mm×32mm (Not included Antenna)
• Weight 220g (Including battery)
• Antenna impedance 50Ω

Transmitter

• Frequency Stability ±2.5PPM
• Output Power ≦5W
• Max Frequency Deviation ≦5KHz
• Audio Distortion ≦3%
• Modulation Character +3dB—-3dB
• Adjacent Channel Power ≥65dB
• Spurious Radiation ≤7.5UW(-36db for CE)
• Occupied Bandwidth ≤16KHz

Receiver

• RF Sensitivity ＜0.2UV(12DB SINAD)
• Audio Distortion ≦3%
• Audio Response +2dB—-10dB
• Adjacent Channel Selectivity ≥60dB
• Intermodulation Rejection ≥60dB
• Blocking ≥80dB
  　

  Free for

  Speaker Microphone

•

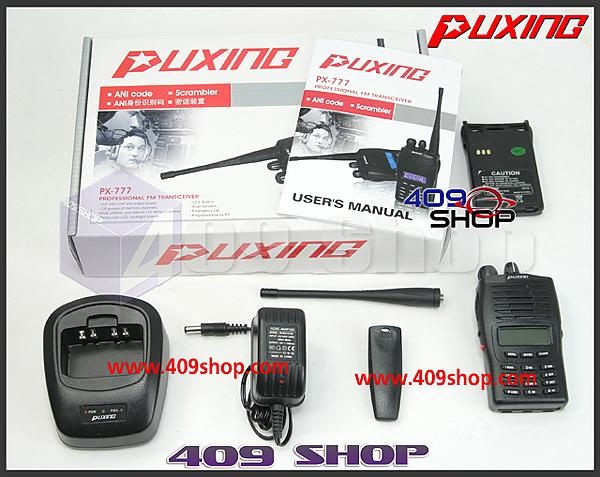

Each Set PACKAGE CONTAIN

1 x PUXING PX-777 plus (UHF 400-470Mhz)
1 x 7.2V 1200mah Li-ion Battery Pack
1 x UHF Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
1 x Earpiece
1 x Speaker Microphone
