PX777 PLUS-VHF+4-001K+41-12K

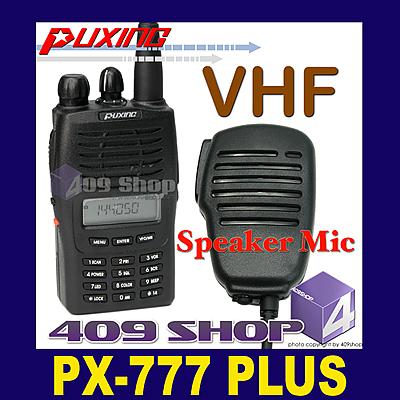

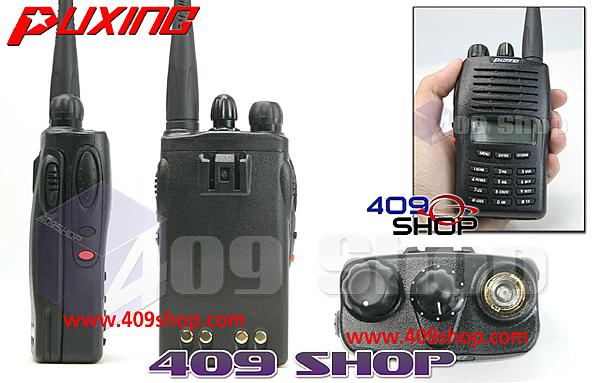

PX-777 PLUS VHF 136-174MHZ Radio+earpiece+speaker mic
1.ANI CODE(PTT ID)
2.Scrambler
3.VHF 5W 4W output power
4.128 memory channels
5.Built-in 50 CTCSS and 104 DCS
6.Wide (25kHz) and Narrow(12.5kHz) channel spacing programmable in separate channels
7.Come with 1200mAh Li-ion battery
8.Input Frequency directly by keypad
9.VOX built-in
10.Frequency Scan & CTCSS Scan
11.Three different scan type: TO/CO/SE
12.Three color LCD backlight display
13.Sound Alarm
14.Programmable by PC software
16.Priority Scan Function
17.Adjust power High/Low
18.Switching between Channel/VFO
19.Display Channel+ Frequency mode.
20.Adjust squelch level (0-9)
21.Busy channel lockout
22.Keypad lock
23.Reverse Frequency Function
24.Channel step 5k,10k,6.25k,12.5k,25k
25.Program alphanumeric channels name
26.Self-program
27.Voice Annunciation
28.CE/FCC approved
29. 136-174MHZ
TECHNICAL:
- Frequency Range 136―174MHz
- Working Temperate －20℃―＋50℃
- Operating Voltage DC 7.2V
- Operate Mode Simplex or Semi-duplex
- Dimension 100mm×55mm×32mm (Not included Antenna)
- Weight 220g (Including battery)
- Antenna impedance 50Ω
Transmitter
- Frequency Stability ±2.5PPM
- Output Power ≦5W
- Max Frequency Deviation ≦5KHz
- Audio Distortion ≦3%
- Modulation Character +3dB—-3dB
- Adjacent Channel Power ≥65dB
- Spurious Radiation ≤7.5UW(-36db for CE)
- Occupied Bandwidth ≤16KHz
Receiver
- RF Sensitivity ＜0.2UV(12DB SINAD)
- Audio Distortion ≦3%
- Audio Response +2dB—-10dB
- Adjacent Channel Selectivity ≥60dB
- Intermodulation Rejection ≥60dB
Free for

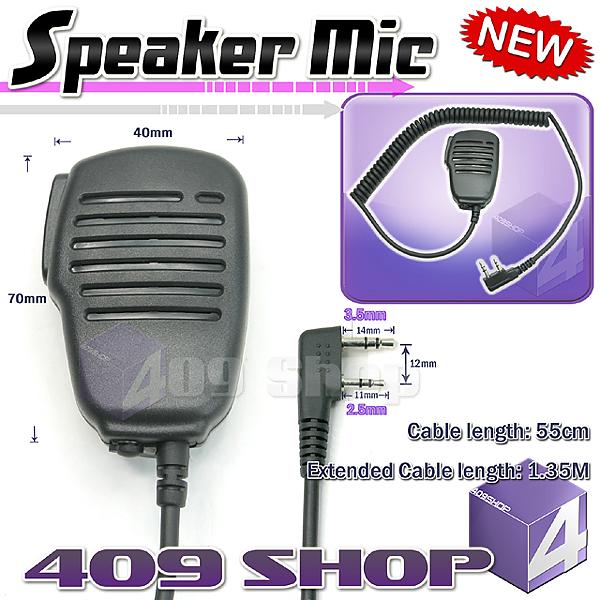

Speaker Microphone
Free for

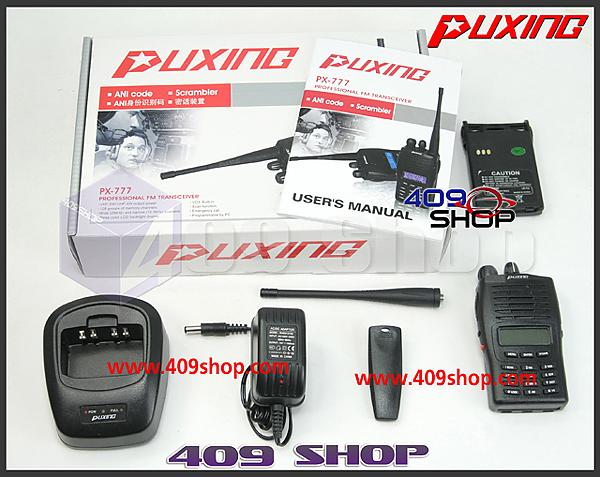

- 1 x PUXING PX-777 Plus (VHF 136-174Mhz)
- 1 x 7.2v 1200mah Li-ion Battery Pack
- 1 x Antenna 136-174Mhz
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x PTT Earpiece for free
|
|
|
|
