PX2R +4-001R+41-27R

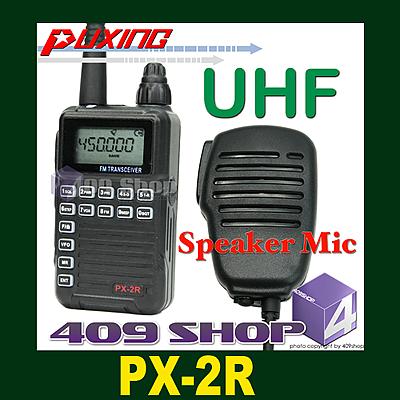

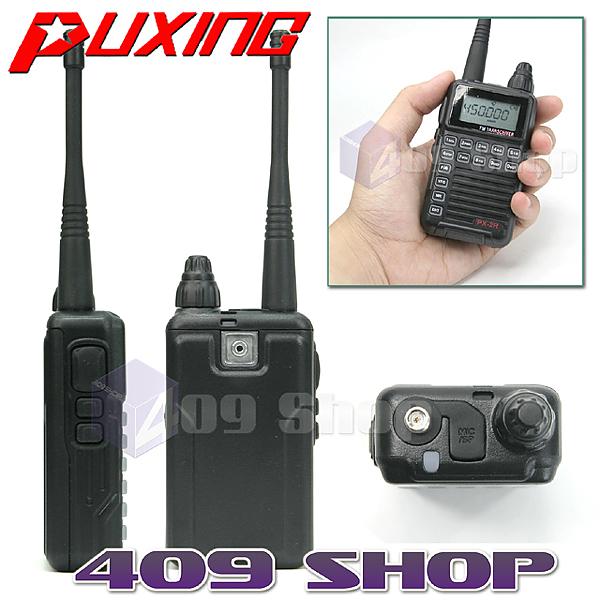

PUXING PX-2R UHF 400-470Mhz Small Radio with speaker mic

1）CH 128 , All channel scan and priority channel scan
2）Scan types :Carrier， time and search
3) Busy channel lock: carrier/QT/DQT
4）VOX sensitivity:0-9 levels adjustable
5）Transmitter power：High power and low power switchable
6）Squelch opening threshold: Receive field intensity should accurate (use the sq level to show the intensity)
7）Led backlight: On/off/automatic
8）Beep set: Beep on/off
9）Keypad lock function: Manual/auto optional
10）Transmit limited: off-270 optional
11）Offset set:0-xxmhz optional (confirm the max offset according to the band after adjusting)
12）CTCSS and DCS setting
1． Receive only
2． Transmit only
3． 50 CTCSS and 104 DCS
13）+/-offset:+/-frequency optional
14）Offset step optional:12.5k/25k
15）Use Dot Segment to display on LCD
16）Select the LED/emergency call by programming software
17）Volume control knob to turn on/off the power
18）PC programming and store channel
19）Can use car charger
20）DC 3.7V single li-ion battery compatible with mobile phone battery
21) MINI compact size 84*48*25 cm
22) Output power: UHF 400-470mhz 2w
23 With most competitive price

Specifications:

Frequency Range	UHF 400-470MHz
Operating Voltage	3.6V
Operating Temperature	-30c~+60c
Battery	1100mAh(Li-ion)
Antenna Impedance	50 ohm
Dimension(without antenna&battery(L×W×H)	844825(mm)
Weight(with antenna&battery)	200g
Transmitter
RF Power Output	UHF:2W/1W
FM Noise	55dB
Adjacent Channel Power	55dB/60dB
Receiver
Selectivity	60dB
Intermodulation	60dB
Spurious Response Rejection	40dB

Menu in User manual is the old version, here is the new version of PX-2R Menu

VFO 16 MENU		MR MEMORY
1	SQL (squelch level setting)	1	SQL (squelch level setting)
2	POW (power level setting)	2	POW (power level setting)
3	S-D (repeater shift)	3	PRI (priority channel scan)
4	T-R (transmit/receive frequency reversed)	4	VOX (VOX setting)
5	STEP (frequency step)	5	FM (FM radio)
6	VOX (VOX setting)	6	BEEP (key-touch tone)
7	FM (FM radio)	7	C-CDC
8	BEEP (key-touch tone)	8	R-CDC (receive CTCSS/DCS)
9	C-CDC	9	LAMP (backlight control)
10	R-CDC (receive CTCSS/DCS)	10	SCANS (scan type)
11	LAMP (backlight control)	11	TOT (time-out timer)
12	SCANS (scan type)	12	SAV (save power)
13	TOT (time-out timer)	13	NM SET (edit channel name)
14	DIFFR (repeater offset)	14	NAME (frequency display mode)
15	W/N (wide/narrow band)
16	SAV (save power)

Information of this web site is subject to change without prior notice.

Free for

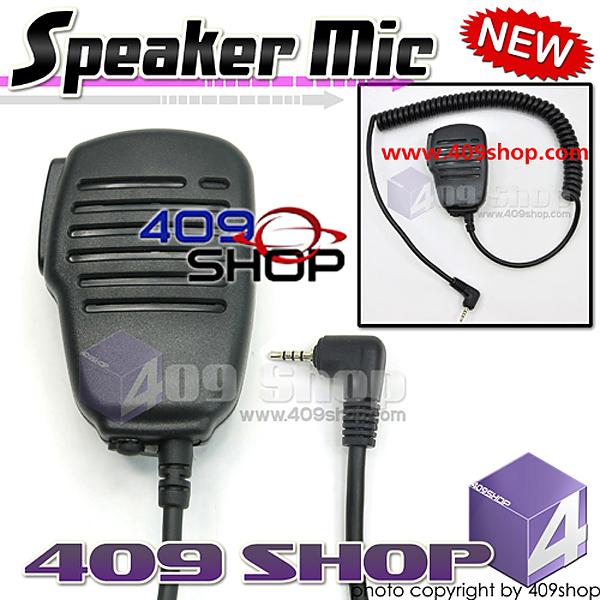

Speaker Microphone

Free for

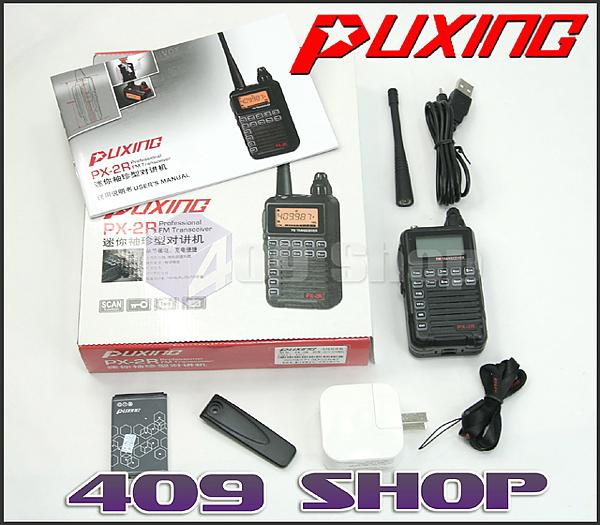

Each Set PACKAGE CONTAIN

1 x PX-2R (UHF 400-470Mhz)
- 1 x 3.7v 1100mah Li-ion Battery
  - 1 x Antenna.
    - 1 x Belt Clip.
      - 1 x ENG Manual

        1 x Charger with Cable ( USB Cable)

        1 x PTT Earpiece for free

        1 x WRIST STRAP

        1 x Speaker Microphone
