0019-0008(DC-800)

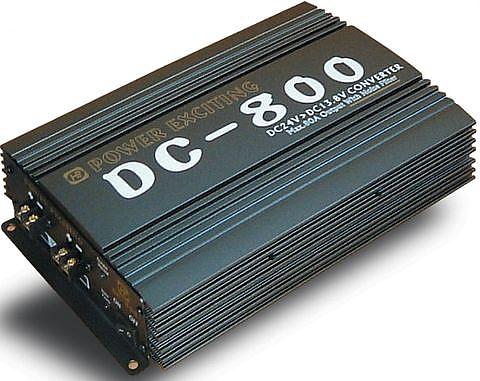

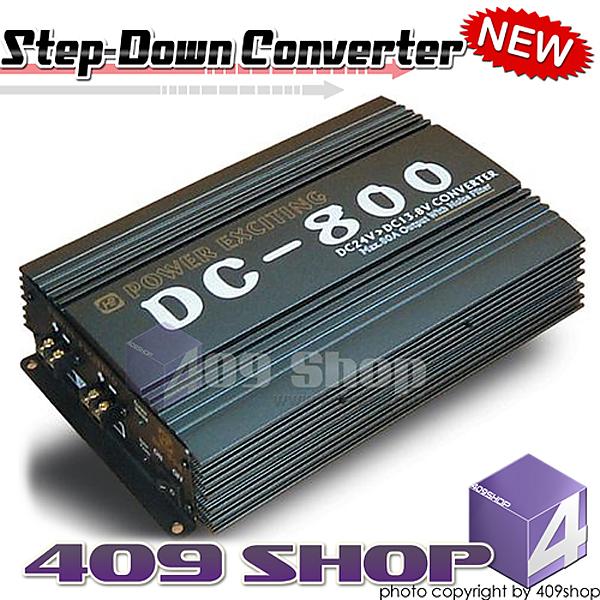

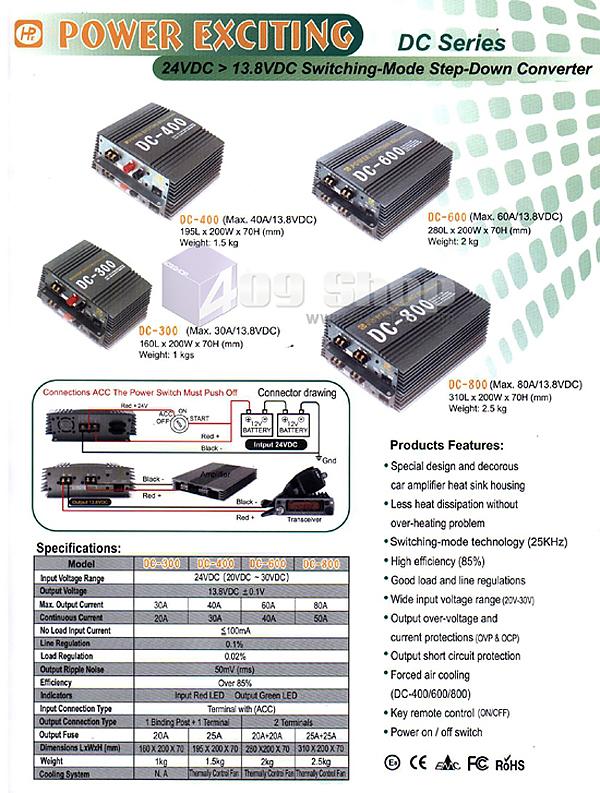

DC24V TO DC13.8V Step-Down Converter (80A Max.) DC-800

Features:

Special design and decorous car amplifier heat sink housing
Less heat dissipation without over-heating problem
Switching-mode technology (25KHz)
High efficiency (85%)
Good load and line regulations
Wide input voltage range
Output over-voltage and current protections
Output current limit and short circuit protections
Forced air cooling (DC-400/600/800)
Key remote ON/OFF control
Power on / off switch
Specifications:

Input Voltage Range: 20V DC – 30V DC
Output Voltage: 13.8V DC ± 0.1V
Max. Output Current: 80A
Continuous Current: 50A
No Load Input Current:≦ 100mA
Line Regulation: 0.1%
Load Regulation: 0.02%
Output Ripple Noise: 50mV (rms)
Efficiency: Over 85%
Indicators: Power on LED
Input connection type :Terminal with (ACC)
Output connection type : 2 Terminals
Input Fuse Type car blade : 25A+25A
Dimensions WxLxH (mm) : 200 x 310 x 70
Weight :2.5Kg
Cooling System :Thermally Control Fan

產品包括:
1 x DC24V TO DC13.8V Step-Down Converter (80A Max.) DC-800
