0019-0005(DC-300)

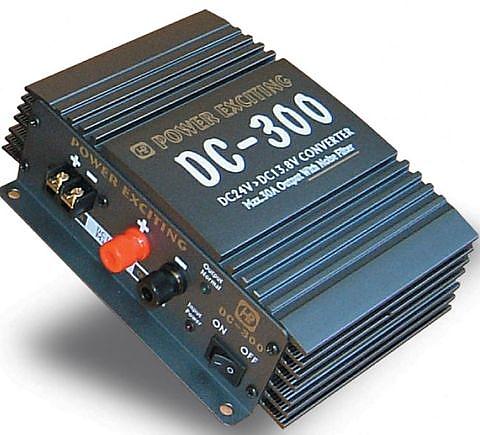

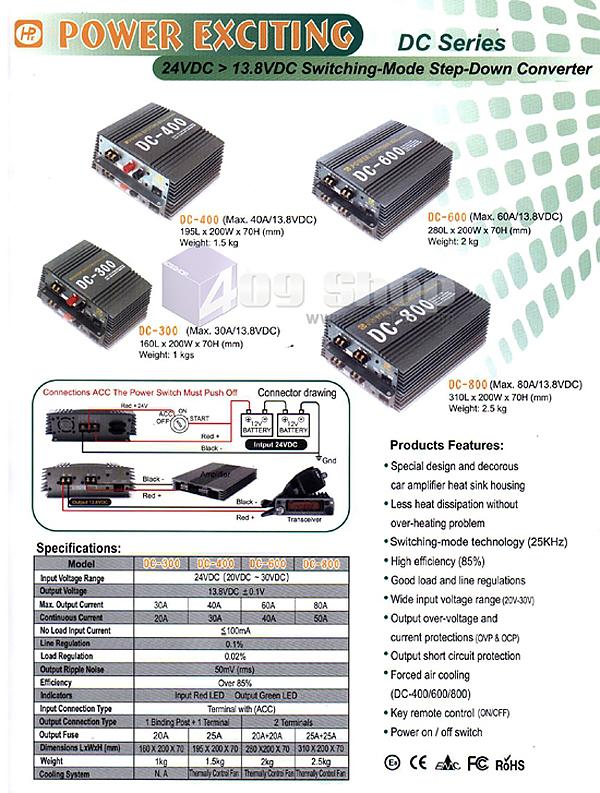

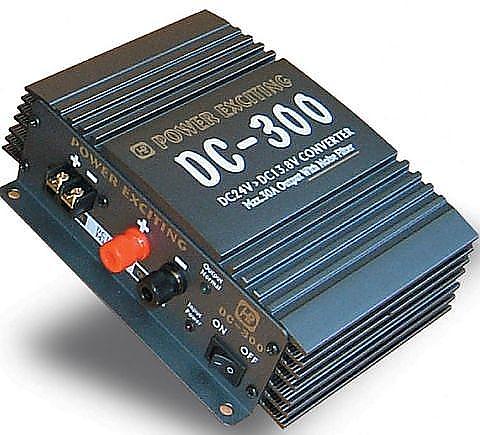

DC24V TO DC13.8V Step-Down Converter (30A Max.) DC-300

Features:

Special design and decorous car amplifier heat sink housing

Less heat dissipation without over-heating problem
Switching-mode technology (25KHz)
High efficiency (85%)
Good load and line regulations
Wide input voltage range
Output over-voltage and current protections
Output current limit and short circuit protections
Forced air cooling (DC-400/600/800)
Key remote ON/OFF control
Power on / off switch
Specifications:

Input Voltage Range 20V DC – 30V DC
Output Voltage 13.8V DC ± 0.1V
Max. Output Current 30A
Continuous Current 20A
No Load Input Current ≦ 100mA
Line Regulation 0.1%
Load Regulation 0.02%
Output Ripple Noise 50mV (rms)
Efficiency Over 85%
Indicators Power on LED
Input connection type Terminal with (ACC)
Output connection type 1 Binding Post + 1 Terminal
Input Fuse Type car blade 20A
Dimensions WxLxH (mm) 200 x 160 x 70
Weight 1Kg
Cooling System N. A

產品包括:
1 x DC24V TO DC13.8V Step-Down Converter (30A Max.) DC-300
