0019-0004(DC-200)

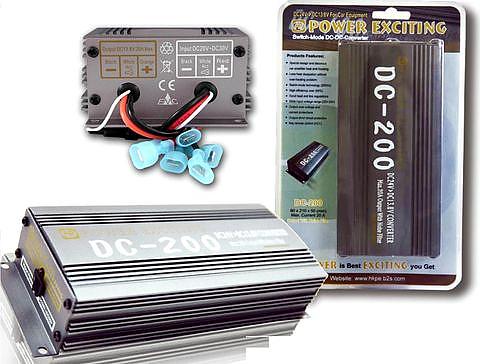

DC24V TO DC13.8V Step-Down Converter (20A Max.) DC-200

Features:

• Special design and decorous car amplifier heat sink housing
• Less heat dissipation without over-heating problem
• Switching-mode technology (25KHz)
• High efficiency (85%)
• Good load and line regulations
• Wide input voltage range
• Output over-voltage and current protections
• Output current limit and short circuit protections
• Key remote control (ACC)
• Power ON/OFF switch

Specifications:

• Input Voltage Range 20V DC – 30V DC
• Output Voltage 13.8V DC ± 0.1V
• Max. Output Current 20A
• Continuous Current 15A
• No Load Input Current ≦ 100mA
• Line Regulation 0.1%
• Load Regulation 0.02%
• Output Ripple Noise 50mV (rms)
• Efficiency Over 85%
• Indicators Power on LED
• Input connection type Red & Black Cables with Terminal (ACC White Cable)
• Output connection type Orange & Black Cables with Terminal (ACC White Cable)
• Output Fuse For (ACC) 2A Glass Fuse
• Dimensions W x L x H: 90 x 210x 50 ( mm )
• Weight 0.7Kg
• Cooling System N.A.

PACKAGE CONTAIN 1 x DC24V TO DC13.8V Step-Down Converter (20A Max.) DC-200
