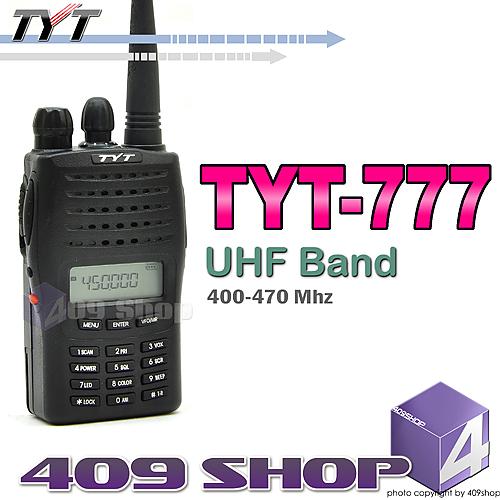

TYT TYT-777 UHF 400-470Mhz Two-way radio x 1set

TYT-777 can supply you with more convenience with the main functions such as 50 CTCSS /104DCS code，voice security device and automatic numbering identification (ANI).

• 128 groups of memory channels
• Reverse frequency function
• Automatic numbering identification (ANI)
• Priority scan
• Voice prompt
• PC Programmable
• Emergency alarm
• Low battery alarm
• Hi-low power control
• Transmit time limiter
• TOT (Time-out-timer)
• Channel name setting
• Group calls/selective calls
• BCL (Busy channel lock)
• Wide/narrow band selection
• Tri-color backlight adjustable
• Selectable squelch grade setting
• VOX function, Voice security device
• Multi and priority channel scan function

Technical parameters

Item number		TYT-777
General
Frequency Range	400-470MHz
Channel Capacity	128
Channel Spacing	5 kHz/6.25kHz/10 kHz / 12.5kHz/25.0kHz
Frequency Stability	±2.5ppm
Operating Temperature	-25～+60℃
Antenna Impedance	50Ω
Operating Voltage	7.4V
Dimensions（W×H×D）	115x 56x 30mm
Weight	220g(Include battery & antenna)
Battery	1300mAh (Li-ion Battery)
Transmitter
RF output power	4W/5W
Modulation Type	16kΦF3E
Modulation Limiting	≤5kHz
Modulation Character	+3dB / -3dB
Spurious Radiation	0.75μW
Adjacent Ch. power	≥65dB
Max Fr. Deviation	≤5kHz
Occupied Bandwidth	≤16KHz
Receiver
Receiving Sensitivity	0.25μV
Adjacent Ch. Selectivity	60dB
Inter-modulation	60dB
Co-channel suppression	-8dB
Audio Response	+2dB -10dB
Audio Output	500mW
Audio Distortion	≤3%

　

　

　

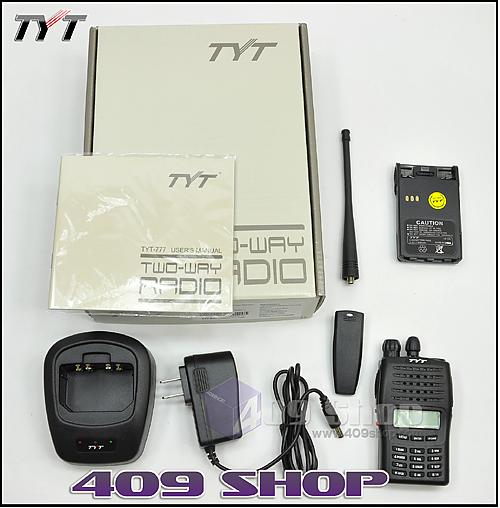

Each Set PACKAGE CONTAIN 1 x TYT TYT-777 (UHF 400-470 Mhz) 1 x 7.4V 1300mah Li-ion Battery Pack 1 x UHF Antenna 1 x Belt Clip. 1 x ENG Manual 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia) 1 x Earpiece
