1 x KG669plus UHF+Free Earpiece
Amateur Handheld Transceivers

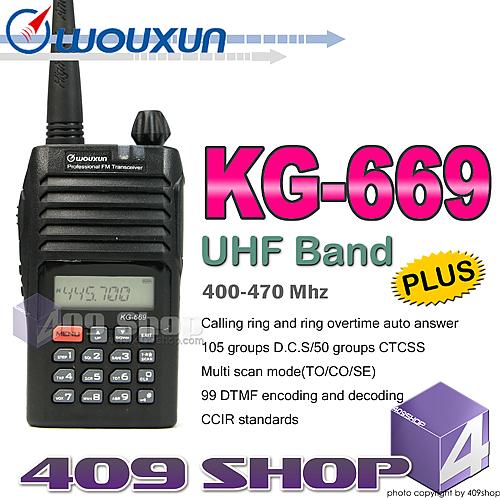

WOUXUN KG-669plus UHF400-470
Transceivers with FM RADIO
-
Scrambler set BUILT IN
-
99 DTMF encoding and decoding, CCIR standards
-
Full frequency range
-
Output power UHF 4W
-
VOX transmission(VOX level adjustable)
-
105 groups D.C.S/50 groups CTCSS
-
All call, group call and select call.
-
ANI ID code(Caller ID)
-
128 memory channels and 1 group emergency channel
-
Voice prompt (Chinese /English)
-
Width/Narrow brand select (12.5KHz/25KHz)
-
Three color back light can be selectable
-
1200mAh Li-ion battery and intelligent charge
-
Frequency/Channel/Frequency+Channel display mode
-
Multi scan mode(TO/CO/SE)
-
Calling ring and ring overtime auto answer
-
Multi silent mode(QT/QTADT/QTXDT)
-
Alarm/Emergency calling
-
Keyboard lock(Auto/Manual)
-
Talk around function
-
Busy channel lockout
-
Programmable by computer
-
Menu/Channel reset
-
FM radio function
|
General |
|
Frequency Range |
400-470MHZ |
| Channels |
128 |
| Channel Steps |
5k,10k,6.25k,12.5k,25k |
| Power Supply |
7.2V1200MAh Li-ion |
| Operating Temperature |
-20°C ~ +60°C |
| Communication Range |
3 ~6km |
| Dimension (H x W x D) |
100 x 55.5 x 31mm |
| Weight |
236g |
|
RX
|
| Sensitivity |
<0.20µV |
| Selectivity |
65dB |
| Intermodulation Rejection |
60dB |
| AF Output |
500mW |
| Standby Current |
35mA |
|
|
| Power Output |
4W |
| Modulation Type |
F3E |
| Spurious Emission |
< -65dB |
| Transmit Current |
700mA/350mA |
| Max. Deviation |
±5kHz |
| Modulation Distortion |
< 5% |
| Frequency Stability |
±2.5ppm |
Specifications from WOUXUN company
-
1x KG-669 plus (UHF 400-470Mhz) (Model with Scrambler set)
-
1x 7.4v 1400mah Battery Pack
-
1x Antenna.
-
1x Wrist Strap
-
1x Belt Clip
-
1x English Manual
-
1x Earpiece
-
1x Desktop Charger *
*100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia) |
|
|
|
